Product Description

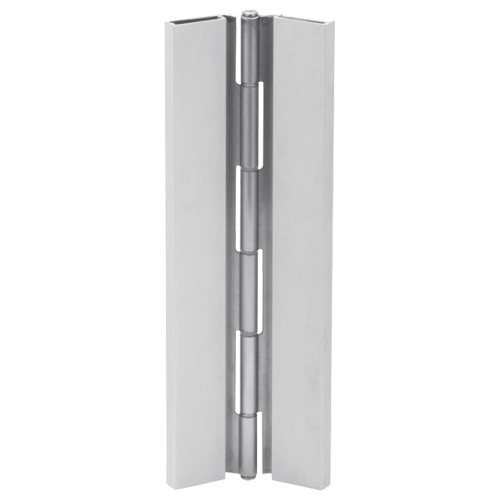

702-US32D-120-SECHM IVES Pin and Barrel Continuous Hinges in Satin Stainless Steel

The IVES 702-US32D-120-SECHM pin and barrel continuous hinges are designed to last the life of the building. The continuous hinges unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. This series continuous hinges are suitable for the high use and high traffic doors. All Ives Pin and Barrel Hinges are certified to ANSI 156.26, Grade 1.

Features and Benefits:

• Satin Stainless Steel finish
• Handing: Non handed
• Hinge Type: Continuous hinge, Full surface
• Flush mounted, No inset
• Length: 120 inch
• Bevel or square edge door
• Security screws for hollow metal door and frame is included
• Mounting hardwares are included
• 48" Maximum Door Width
• For doors weighing up to 600 pounds
