Product Description

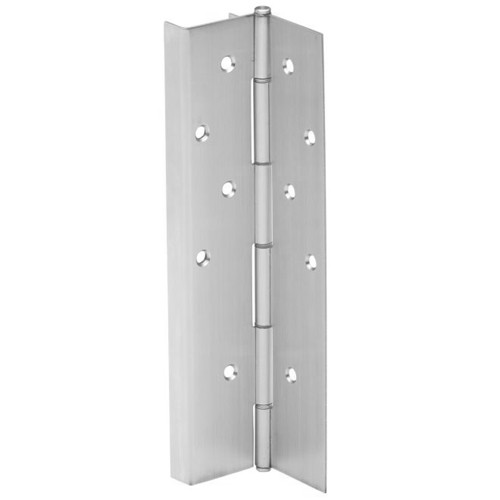

705-US32D-85-WD IVES Full Moritse, Full Wrap Pin and Barrel Continuous Hinges in Satin Stainless Steel

The IVES 705-US32D-85-WD pin and barrel continuous hinges are designed to last the life of the building. The continuous hinges unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. This series continuous hinges are suitable for the high use and high traffic doors. All Ives Pin and Barrel Hinges are certified to ANSI 156.26, Grade 1.

Features and Benefits:

• Satin Stainless Steel finish
• Handing: Non handed
• Hinge Type: Continuous hinge, Full mortise full wrap
• Flush mounted, No inset
• Length: 85 inch
• Bevel or square edge door
• Wood screws for wood door and frame is included
• Mounting hardwares are included
• 48" Maximum Door Width
• Full wrap edge guard
• For doors weighing up to 600 pounds
