Product Description

7100-315-335 Adams Rite Electric Strike 12VDC Fail Safe with faceplate in Black Anodized Finish

The 7100 series Electric Strike with 4-7/8" faceplates are specifically designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection. It provides remote electrical control of any door equipped with an Adams Rite 4500, 4700 or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2" to 5/8" latchbolt projection. Here, the electrical actuation unlocks strike jaw and thus releasing latchbolt so that the door can be opened without operating latch itself. The Adams Rite 7100 series' extremely compact mechanism very smoothly fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8". It easily fits existing prep for discontinued Adams Rite 7000, 7500, 7800 series electric strikes.

Benefits and Features:

• Black Anodized Finish
• Aluminum construction
• 12V DC Continuous or Intermittent voltage operation
• Current Draw/Amps for 12V operation:
  • AC Intermittent - 1.42A
  • DC Continuous - 0.33A
• Stainless Steel Split-Jaw is included with 5/8" x 1-7/16" x 1/2" deep strike opening

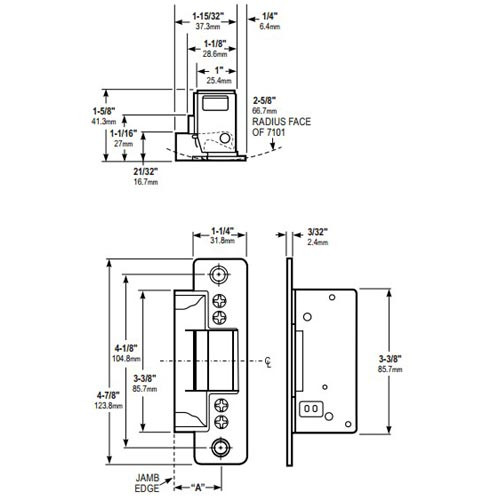

• Available in Zinc-aluminum alloy case size of approximately 1" x 3-3/8" x 1-5/8" deep
• Provides electrical remote control, allowing door to open without depressing the panic hardware cross bar
• UL 1034 burglary-resistant listed hardware
• Fail safe power failure mode
• Flat faceplate 1-1/4" x 4-7/8" is included as always
• Fail safe feature - require power to be applied to the unit to lock the strike lip which is unlocked on loss of power

Individually boxed including mounting screws, mounting clips, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" (inches)
