Product Description

7110-24-612 Yale 7000 Series Non Fire Rated Surface Vertical Rod Exit Device in Satin Bronze Finish

The Yale 7110-24-612 SVR exit device is used on wide stile or flush doors up 10' panic where two-point latching is desired. This Series is a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The 7000 series exit devices are certified to the ANSI/BHMA A156.3, Grade 1.

Features and Benefits:

• Satin Bronze finish
• Door opening width: 24 inch
• Handing: Field reversible
• Hex key dogging supplied standard
• Non fire rated
• Door Thickness: 1-3/4" (44mm) standard.
• Door type: Standard device, 4-1/2" (114mm) or wider door stile.
• Sleek design with clean lines offers a modern look

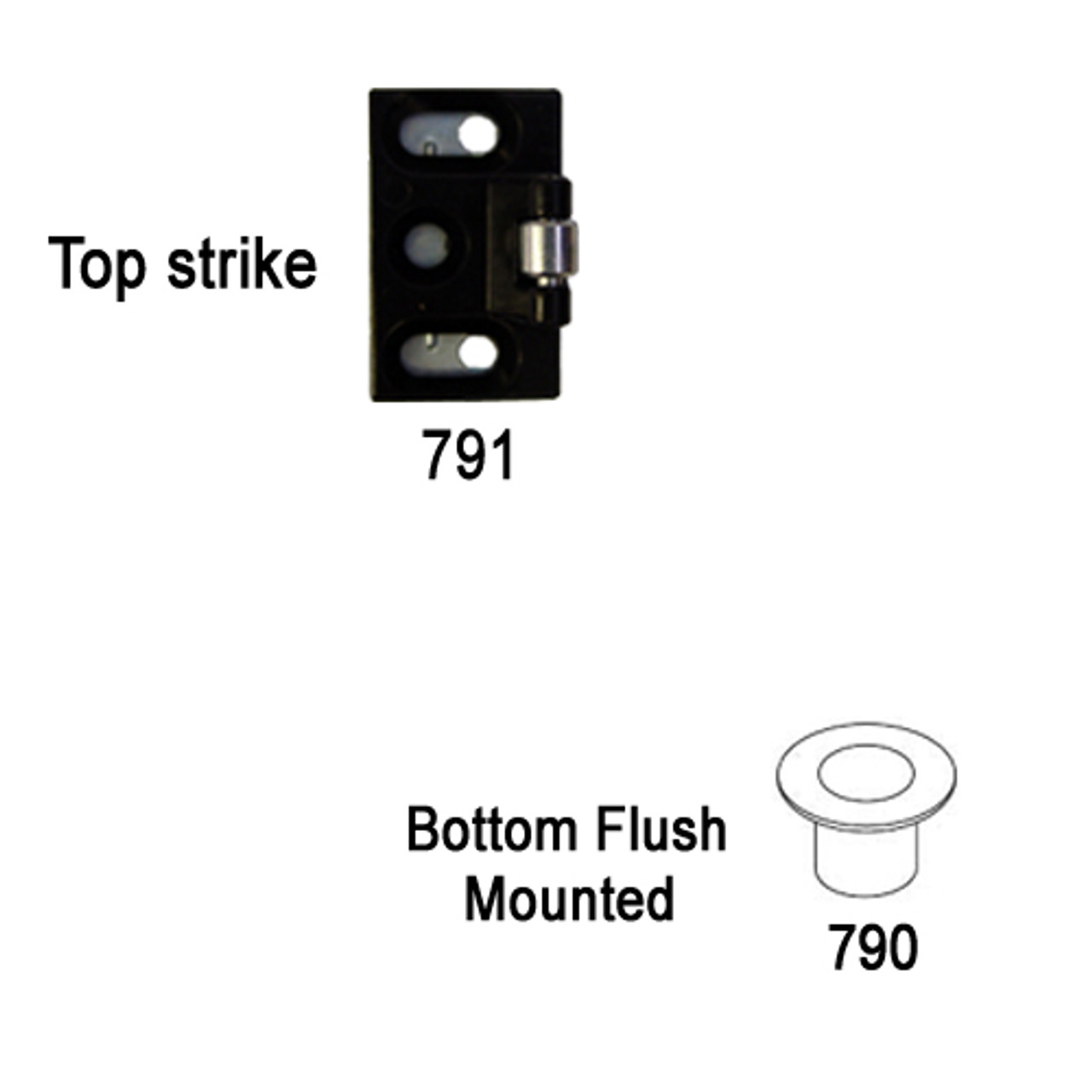

• Strike: Top: Roller type 791. Bottom: Flush mounted 790.
• Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides
• Fasteners: Machine screws and wood door fasteners standard
• Featuring unique Free Wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism

*Note: If "-24" device is to be used with a DOW greater than 24", the device will ship without UL label. The 12" touchpad will not cover 50% of the device touchbar length.
