Product Description

7120-36-629 Yale 7000 Series Non Fire Rated Concealed Vertical Rod Exit Device in Bright Stainless Steel Finish

The Yale 7120-36-629 CVR exit device is used on metal door only up 10' panic where two-point latching is desired. This Series is a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The 7000 series exit devices are certified to the ANSI/BHMA A156.3, Grade 1.

Features and Benefits:

• Bright Stainless Steel finish
• Door opening width: 36 inch standard
• Handing: Field reversible
• Hex key dogging supplied standard
• Non fire rated
• Door Thickness: 1-3/4" (44mm) standard.
• Door type: Standard device, 4-1/2" (114mm) or wider door stile.
• Sleek design with clean lines offers a modern look

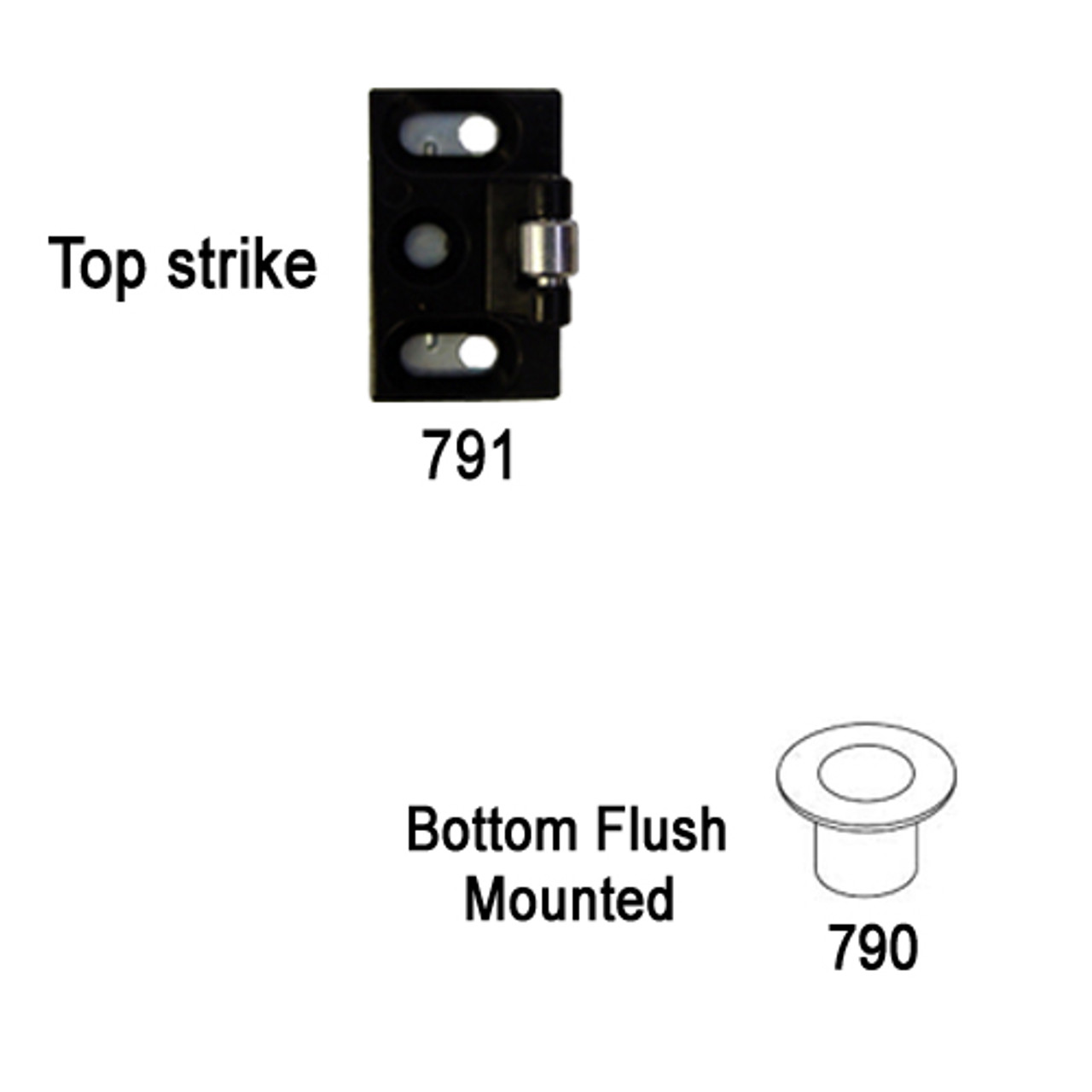

• Strike: Top: Roller type 791. Bottom: Flush mounted 790.
• Vertical Rods: 1/2" (13mm) O.D. telescoping tubular rods
• Fasteners: Machine screws fastener standard
• Featuring unique Free Wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism
