Product Description

7120F-24-605 Yale 7000 Series Fire Rated Concealed Vertical Rod Exit Device in Bright Brass Finish

The Yale 7120F-24-605 CVR exit device is used on metal door only up 8' fire rated where two-point latching is desired. This Series is a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The 7000 series exit devices are certified to the ANSI/BHMA A156.3, Grade 1.

Features and Benefits:

• Bright Brass finish
• Door opening width: 24 inch
• Handing: Field reversible
• No dogging features
• Fire rated
• Door Thickness: 1-3/4" (44mm) standard.
• Door type: Standard device, 4-1/2" (114mm) or wider door stile.
• Sleek design with clean lines offers a modern look

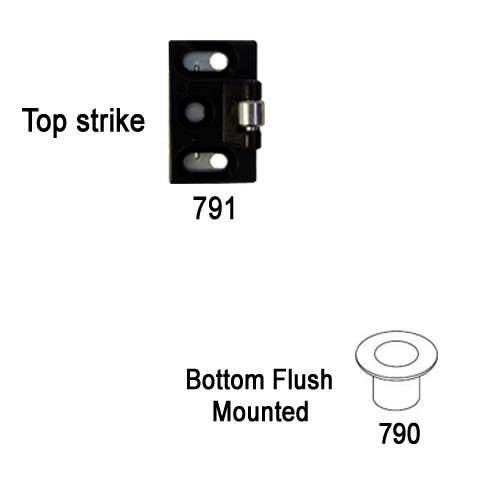

• Strike: Top: Roller type 791. Bottom: Flush mounted 790.
• Vertical Rods: 1/2" (13mm) O.D. telescoping tubular rods
• Fasteners: Sex nuts and bolts supplied standard
• Featuring unique Free Wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism

*Note: If "-24" device is to be used with a DOW greater than 24", the device will ship without UL label. The 12" touchpad will not cover 50% of the device touchbar length.
