Product Description

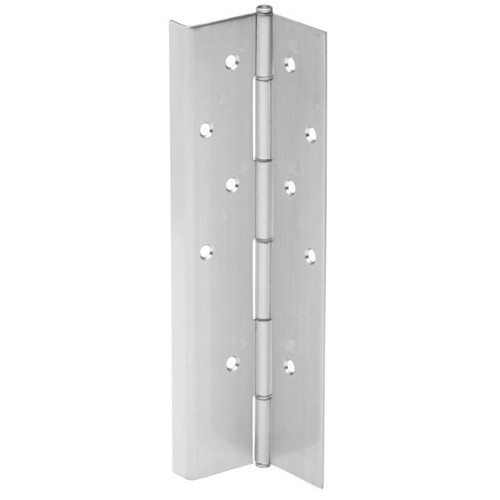

715-US32D-120 IVES Full Moritse, Half Wrap Pin and Barrel Continuous Hinges in Satin Stainless Steel

The IVES 715-US32D-120 pin and barrel continuous hinges are designed to last the life of the building. The continuous hinges unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. This series continuous hinges are suitable for the high use and high traffic doors. All Ives Pin and Barrel Hinges are certified to ANSI 156.26, Grade 1.

Features and Benefits:

• Satin Stainless Steel finish
• Handing: Non handed
• Hinge Type: Continuous hinge, Full mortise half wrap
• Flush mounted, No inset
• Length: 120 inch
• Bevel or square edge door
• Mounting hardwares are included
• 48" Maximum Door Width
• Half wrap edge guard
• For doors weighing up to 600 pounds
