Product Description

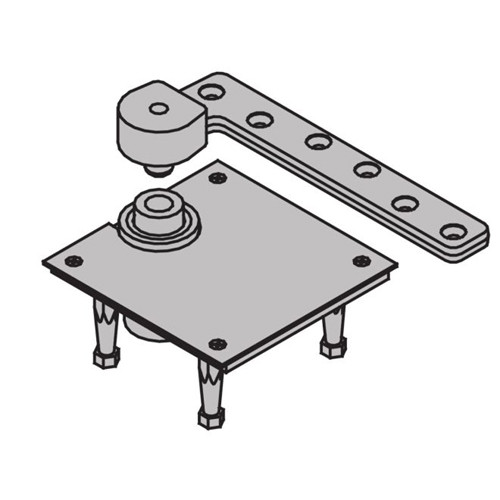

7227-BTM-US4-RH IVES 7227 3/4" Offset Bottom Pivot in Satin Brass

The IVES 7227-BTM-US4-RH pivots reduce stress on the frame by distributing the door weight throughout the floor and structure. By taking advantage of the structure quality, this makes a pivot the ideal solution for heavy doors. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load. These series pivots are Certified to ANSI 156.26, Grade 1.

Features and Benefits:

• Satin Brass finish
• Handing: Right handed
• Bottom, base plate mount
• Superior corrosion resistance
• Vertical adjustment range 3/16", with positive locking
• Maximum door load 700 pounds
• Ideal solution for heavy doors
• Ul Listed 20 minute fire doors
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
