Product Description

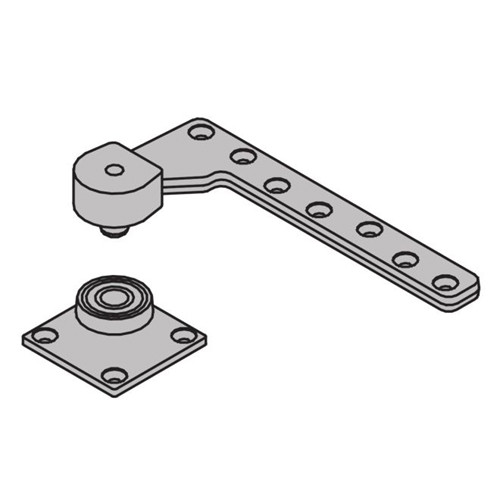

7244F-SET-US10 IVES Fire Rated 7244F 1-1/2" Offset Top & Bottom Pivot in Satin Bronze

The IVES 7244F-SET-US10 pivots reduce stress on the frame by distributing the door weight throughout the floor and structure. By taking advantage of the structure quality, this makes a pivot the ideal solution for heavy doors. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load. These series pivots are Certified to ANSI 156.26, Grade 1.

Features and Benefits:

• Satin Bronze finish
• Handing: Non handed
• Top, header mount
• Bottom, base mount
• Superior corrosion resistance
• Vertical adjustment range 3/16", with positive locking
• Maximum door load 400 pounds
• Ideal solution for heavy doors
• 7244F - UL Listed 3 hour fire doors
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
