Product Description

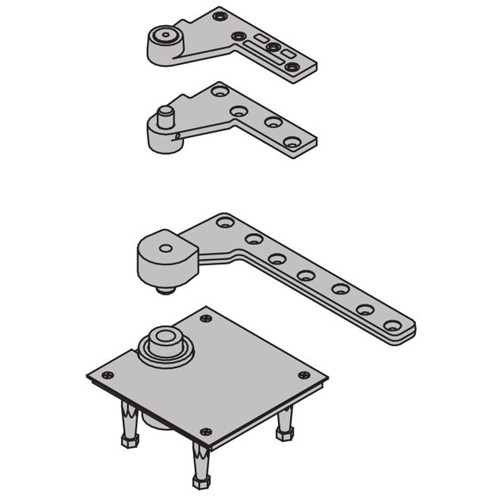

7245F-SET-US26D IVES Fire Rated 7245F 1-1/2" Offset Top & Bottom Pivot in Satin Chrome

The IVES 7245F-SET-US26D pivots reduce stress on the frame by distributing the door weight throughout the floor and structure. By taking advantage of the structure quality, this makes a pivot the ideal solution for heavy doors. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load. These series pivots are Certified to ANSI 156.26, Grade 1.

Features and Benefits:

• Satin Chrome finish
• Handing: Non handed
• Top, header mount
• Bottom, mortised cement case mount
• Superior corrosion resistance
• Vertical adjustment range 3/16", with positive locking
• Maximum door load 500 pounds
• Ideal solution for heavy doors
• 7245F - UL Listed 3 hour fire doors
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
