Product Description
7253MPSO-RH-24VDC-689 Norton 7200 Series Electromechanical Closer and Holder with Double Egress Arm Slide Track Slave/Support Unit in Aluminum Finish
The Norton 7253MPSO-RH-24VDC-689 multi-point electromechanical closer/holder are providing flexibility to installers and facility managers. The 7200 Series is designed to hold the door open at any point up to 180 degrees. This 7200 Series Electromechanical Closer/Holders combine the functions of an electromechanical door holder with the 7700 series door closer. This series are certified to ANSI/BHMA A156.15.

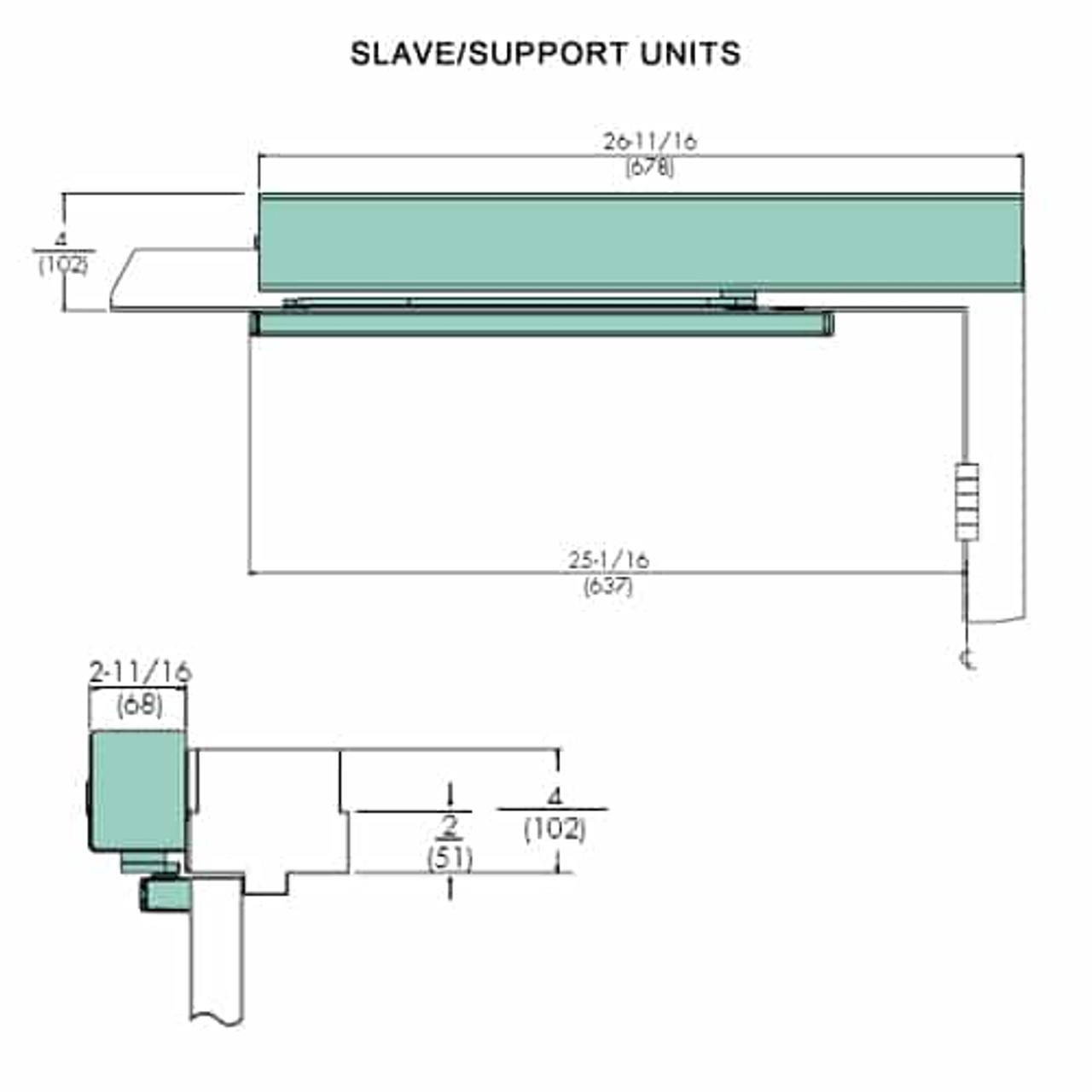

Identical in size to the Master Unit, the Slave/Support Unit consists of an on-board power supply (for 120VAC input option) or a terminal strip (for 24VDC input option) and a door closer assembly with internal electro hydraulic holder capability. This unit (120VAC or 24VDC) is intended to control a single door or a pair of doors where the building's alarm system monitors the power to the Slave/Support Unit (24VDC input) or to control the inactive leaf of a pair of doors where the active leaf is controlled by a Master Unit.
Features and Benefits:
- Aluminum finish
- Spring sizes: 3
- Handing: Right handed
- Multi-point, electromechanical closer and holder
- Voltage: 24VDC
- Fail safe operation
- Rack and pinion operation
- 1/8" (3mm) - standard frame reveal
- Minimum 4" ceiling clearance required
- Selectable hold open time standard
- Concealed or surface wiring
- Double egress arm slide track
- Surface mounted to the pull (hinge) side frame face
- Adjustable backcheck position valve
- Manufactured in an ISO 9001 facility
