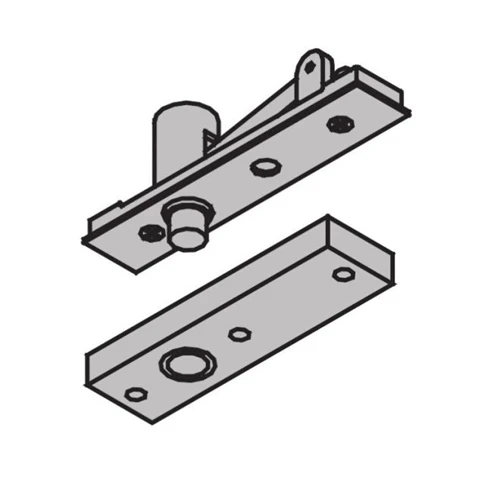

7256-TOP-US10 IVES 7256 1-1/2" Center Hung Top Pivot in Satin Bronze

The IVES 7256-TOP-US10 pivots reduce stress on the frame by distributing the door weight throughout the floor and structure. By taking advantage of the structure quality, this makes a pivot the ideal solution for heavy doors. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load. These series pivots are Certified to ANSI 156.26, Grade 1.

Features and Benefits:

• Satin Bronze finish
• Handing: Non handed
• Top, header mount
• Superior corrosion resistance
• Vertical adjustment range 3/16", with positive locking
• Ideal solution for heavy doors
• Use with 1-3/4" minimum door thickness
• Adjustable floor to door clearance 3/16" to 3/4".
• Easy installation tilt on bearing and bearing pin
