Product Description

747XU HPC Scotsman Tubular Duplicode Key Machine

The tubular lock was invented in 1934 and was developed specifically as a high security alternative to the common commercial lock cylinder. Today, tubular locks are found virtually everywhere, from alarm switches to vending machines, from cam locks to motorcycle ignitions. Tubular locks continue to be an essential part of the security picture as a whole. For a locksmith to be successful in today’s market he or she must be able to produce all types of keys for their customers, including tubular keys.

This HPC/Scotsman Tubular Key Cutting Machine provides you with the following features:

• Compactness: The small physical size and light-weight construction allows for easy storage, requires minimum bench space, and makes it ideal for shop or mobile service.
• Simplicity: The HPC/Scotsman Tubular Key Machine offers fast, easy operation, whether duplicating, or cutting to code. The simplicity of the machine also assures you of many years of profitable, accurate key cutting, with a minimum of required maintenance.
• Universality: HPC/Scotsman Model #747XU will cut all cuts on the 3 sizes of the most popular tubular keys (indicated below), plus the Fort (GEM) “thick walled” key.
• Durability: Every part of the machine is designed and manufactured to provide extended life, giving added trouble-free service. Each machine is unconditionally guaranteed by the manufacturer for 90 days. (Remember to fill out and return the warranty card which is provided with this machine).
• Accuracy: The HPC/Scotsman Tubular Key Machine is a precision machine which has been properly adjusted before leaving the factory. The adjustment of the machine assures you fast, accurate key cutting capabilities. All parts of the machine are manufactured to the highest quality standards, insuring you more years of accurate operation.

Tubular Keys:
Also known as “Ace Type Keys” or “Round Keys”. The tubular key is designed to actuate locks which are constructed with the pin tumblers arranged in a circular fashion. The key is constructed with a cylindrical body designed to enter the keyway of such a lock. Various cuts which appear on the circumference of this key allow the pin tumblers of the lock to be depressed to the proper depth thereby meeting a common shearline, and allowing the lock to turn. Proper arrangement and depth of these cuts is critical in order for the lock to be actuated smoothly and efficiently.

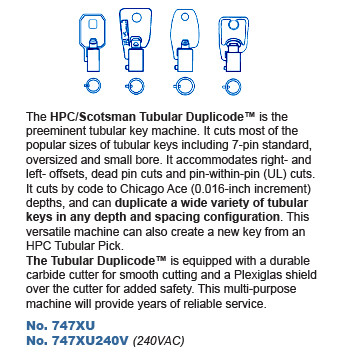

“Small” Tubular Keys: Less common than the standard size, this key measures .365”/9.27mm in outside diameter. Use HPC/Scotsman 137SB key blanks.
“Standard” Tubular Keys: This is the most common of the tubular key family
Motor: 120VAC/60 cycle (1.2 amp 1/15hp)
Weight: 7 lbs.
Machine Size: 16”W x 4”D x 4 1/2” H
