Product Description

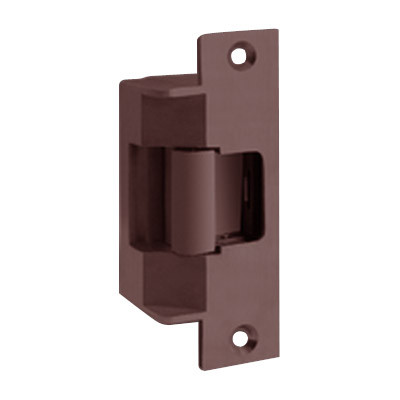

7501-12-613 Hes Electric Strike in Bronze Toned Finish

The 7501 series is a heavy duty stainless steel construction electric strike ideal for fire-rated applications with pre-load conditions which may either be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause the door to bind. The Hes 7501 series provides the good strength and durability required to accommodate fire rated latchbolts up to 3/4" throw.
Pre-Load is when pressure for whatever reason is pushing against the door and preventing the strike or latch from working. This electric strike can handle up to 15 LBS of pre-load in fail secure mode

Benefits and Features:

• Bronze Toned Finish
• All durable stainless steel construction material
• Grade 1 strength
• 12 VDC/VAC voltage operation
• Tamper resistant hardware
• Two furnished plug connectors included as always
• Non-handed operation provides greater flexibility
• Fire rated UL 10C, 3 hour (fail secure)
• UL 1034 burglary-resistant listed door hardware
• Fail Safe/Fail Secure field selectable
• Includes internally mounted solenoid as always
• Five year limited warranty is included

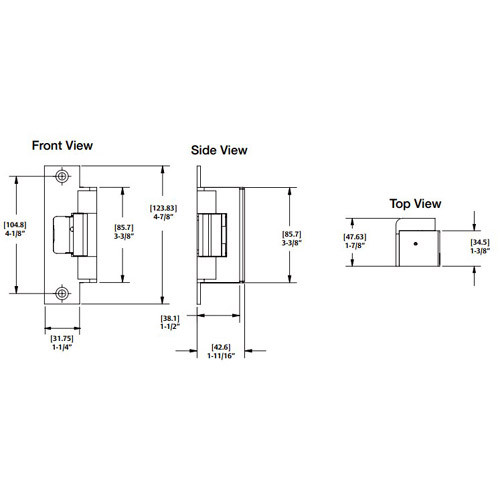

• Electric Strike complete with faceplate of size 4-7/8" x 1-1/4" x 1-11/16" to accommodate cylindrical locksets up to 3/4" throw for metal frame applications
