Product Description

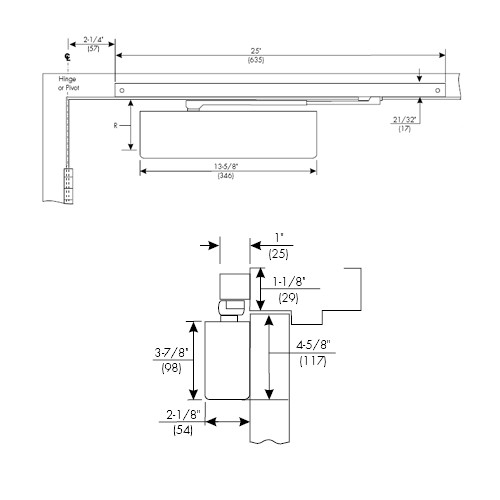

7540STH-DA-693 Norton 7500 Series Hold Open Institutional Door Closer with Pull Side Low Profile Slide Track in Black Finish

The Norton 7540STH-DA-693 hold open door closer offers the ideal combination of superior performance, strength and quality. The 7500 Series door closer is the ideal for interior or exterior doors in facilities that demand reliability. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Black finish
• Handing: Non handed
• Hold open
• With the delayed action
• Rack-and-pinion design
• Cast aluminum body
• Staked valves
• Adjustable spring sizes 1-6
• 2-3/16" (56mm) projection
• 1-1/2" (38mm) diameter piston
• Self-drilling screws
• Slide Tracks: Pull side mounting
• Exceeds 25 million cycles (witnessed and verified by UL)
• Backcheck positioning valve
• Pull side low profile slide track arm
