Product Description

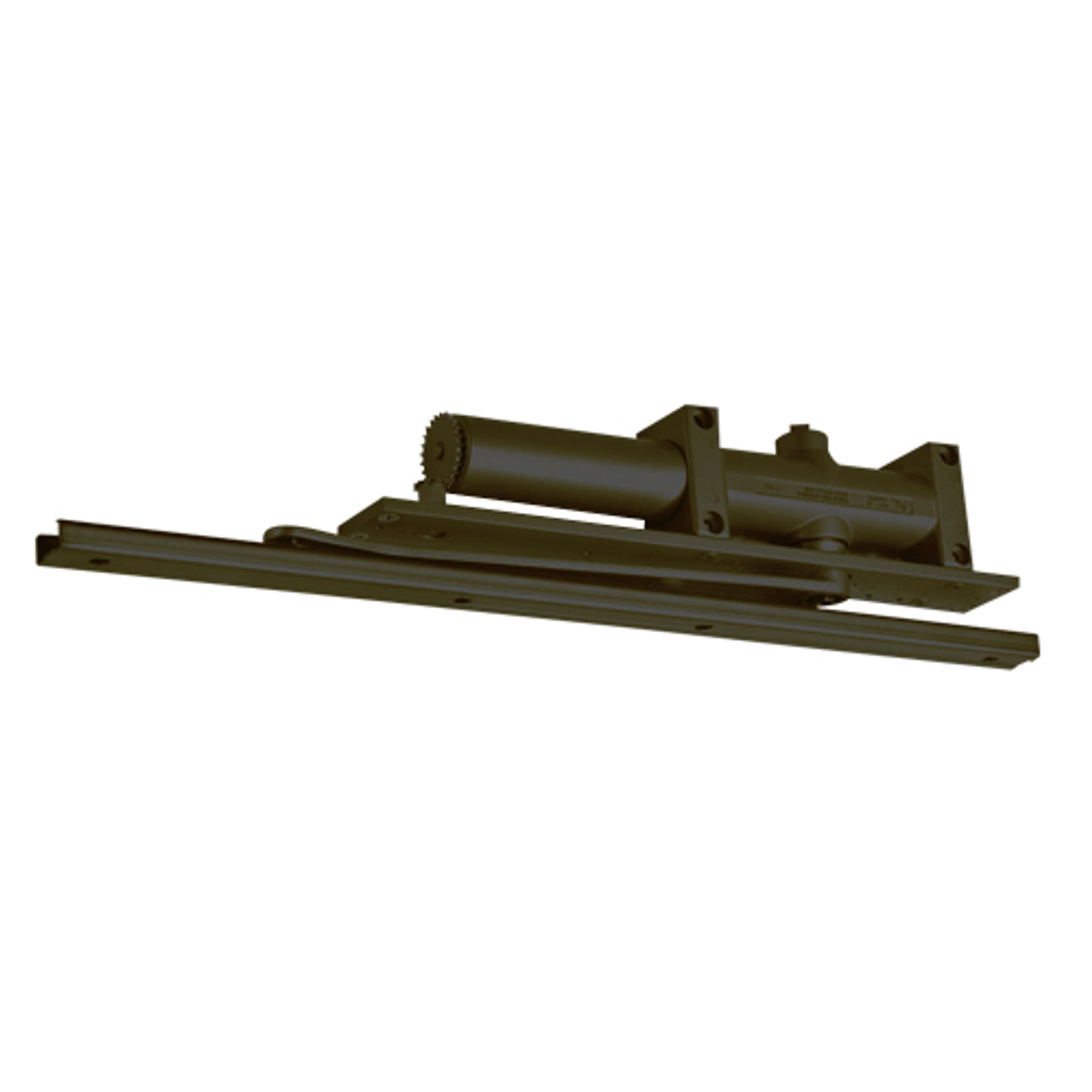

7906H-694-LH Norton 7900 Series Hold Open Overhead Concealed Closers with Spring Size 6 in Medium Amber Finish

The Norton 7906H-694-LH Overhead concealed closers are ideal for situations where a closer is needed, but concealment in the frame header is required or desired. The 7900 overhead closers are best suited for high-profile applications such as office buildings or conference centers. If 7900 series installed, only the solid one-piece arm is visible when the door is open; therefore, this unit provides a high degree of vandal resistance. When the door is closed, the closer, arm and slide track are fully concealed. This series are certified to ANSI/BHMA, Grade 1.

Features and Benefits:

• Medium Amber finish
• Hold open
• Handing: Left handed
• Spring-sized: 6
• Rack-and-pinion design
• Dress plate is included
• Steel track
• Steel slider
• Polymer slider pads
• Non-critical valves
• Adjustable sweep speed
• Adjustable latch speed
• Adjustable backcheck cushioning
• Adjustable backcheck positioning
• Torx screws furnished standard
• Door Thickness: 1-3/4" - 2-1/4" (44- 57mm) thick doors
• Wood screws and metal screws for mounting are included
