Product Description

7KC50N16DS3613 Best 7KC Series Passage Medium Duty Cylindrical Lever Locks with Curved Without Return Lever Design in Oil Rubbed Bronze Finish

The Best 7KC50N16DS3613 series is one of the toughest medium-duty cylindrical locks on the market with the proven Grade 2 security. The 7KC series is used for commercial office spaces, college dorms and military bases. The Best 7KC Series are listed by the BHMA for A156.2, Series 4000, Grade 2.

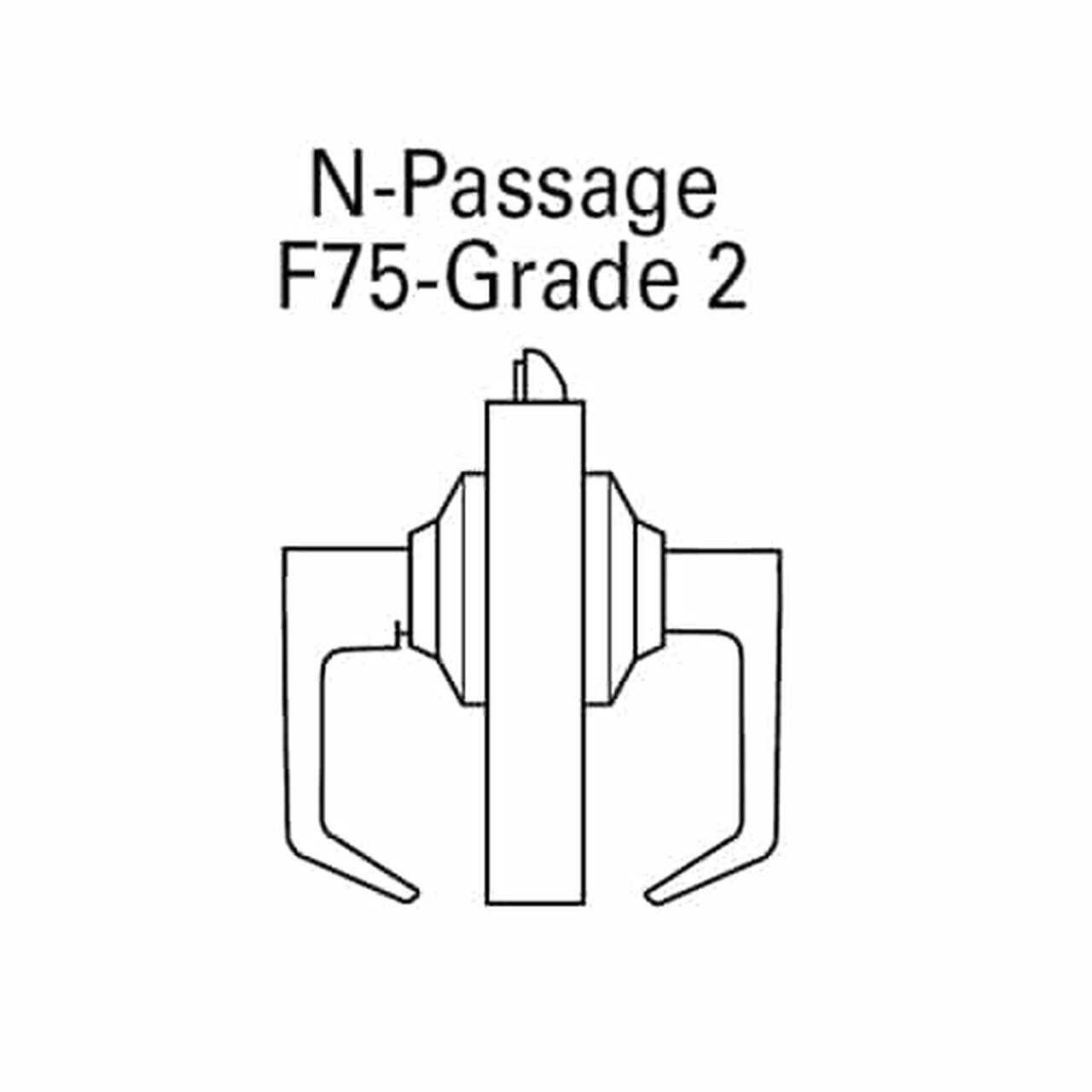

Passage: Latch operated by rotating inside and outside lever; Inside and outside lever can not be locked.

Features and Benefits:

• Oil Rubbed Bronze finish
• Backset: 5"
• Handing: Non Handed
• Non keyed function
• Door thickness: 1-3/8" to 2"
• Latch: 1/2" throw deadlocking latch. Front: 2-1/4" x 1-1/8" x 5/32" standard for 2-3/4" backset
• Strike: S3-ANSI, 4-7/8" x 1-1/4" with curved lip and box
• Projection on door - 2-1/2"
• Lever style: 16 - Curved without return
• Rose style: D - 3-1/2"
• Cylindrical chassis to fit common door preparation
• Fasteners: 2-1/8" diameter bore for lock housing, 1" diameter for latch tube.
