Product Description

8101HDA-691 Norton 8000 Series Hold Open Door Closers with Regular Parallel and Top Jamb to 3 inch Reveal in Dull Bronze Finish

The Norton 8101HDA-691 Series door closer is used for office and commercial interior and exterior doors. The 8000 Series Door Closers offer the ideal combination of appearance, unwavering quality and durability. The medium-duty closer able to meet the many configurations that occur in outfitting a door closer. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Dull Bronze finish
• Hold open
• Handing: Non handed
• Staked valves
• With the Delayed action
• Cast aluminum body
• Rack-and-pinion design
• Exceeds 15 million cycles
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Adjustable spring sizes 1 through 6
• Cover is not included
• This product is manufactured in an ISO 9001 facility
• Door Thickness: 1-3/4" - 2-1/4" (44- 57mm) thick doors

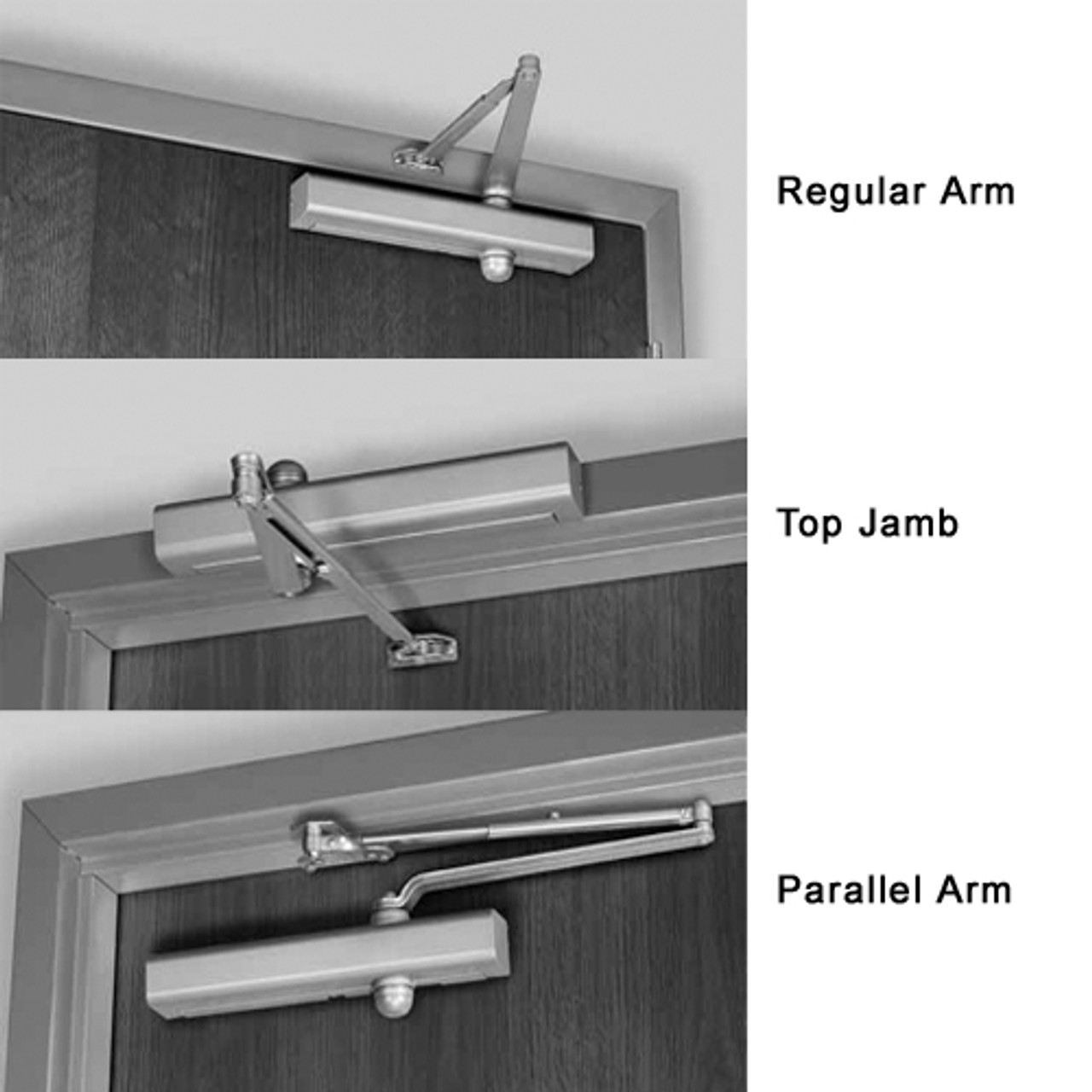

• Tri-Style - Regular, parallel, top jamb to 3" reveal
