Product Description

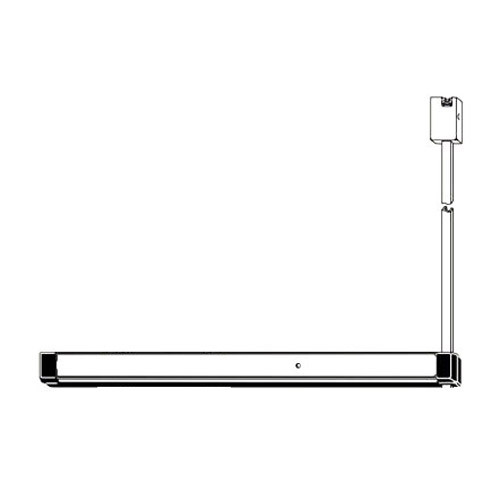

8200T-M2-30-US4 Adams Rite Narrow Stile Surface Vertical Rod Exit Device in Satin Brass Finish

The 8200T-M2-30-US4 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Benefits and Features:

• Satin Brass Pushbar Finish
• Pushbar Length: 30 inches
• Bar Height: Standard model adjusts from 30" to 44"
• Life Safety
• Door Height: Standard model fits up to 8 ft door with bar height at 40"- 44"
• Door Thickness: Suits 1-3/4" standard up to 2-1/4"
• Stile Width: Minimum 2" stile
• Projection: 2-15/16" when fully projected, 1-15/16" when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks the door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Top rod only
• Grade 1 strength
• Dual switch monitoring feature
• 5 year limited manufacturer's warranty is included
