Product Description

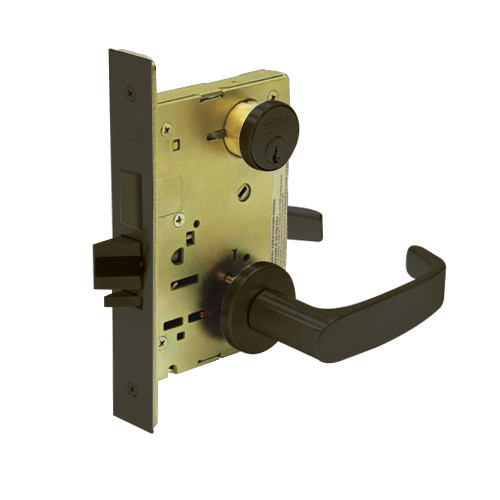

8246-LNL-10B Sargent 8200 Series Dormitory or Exit Mortise Lock with LNL Lever Trim in Oxidized Dull Bronze Finish
The Sargent 8246-LNL-10B Dormitory or Exit mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Dormitory or Exit lock: Key from either side retracts and projects deadbolt; Key from either side retracts both latchbolt and deadbolt, trim outside remains locked; Trim outside is locked by toggle or projecting deadbolt; Trim outside is unlocked by toggle only; Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously and the outside trim remains locked.
Features and Benefits:
- Oxidized Dull Bronze finish
- Minimum stile: 4-1/2" (114mm)
- Backset: 2-3/4" (70mm) only
- Handing: Reversible in field
- Springs: High carbon steel
- Strike: ANSI Standard; curved lip
- Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
- L-lever design with LN rose
- Double cylinder with deadbolt
- Two, nickel silver keys are included
- Cylinder: 6-pin solid brass, LA keyway standard
- Door range: 1-3/4" (44mm) thick standard
