Product Description

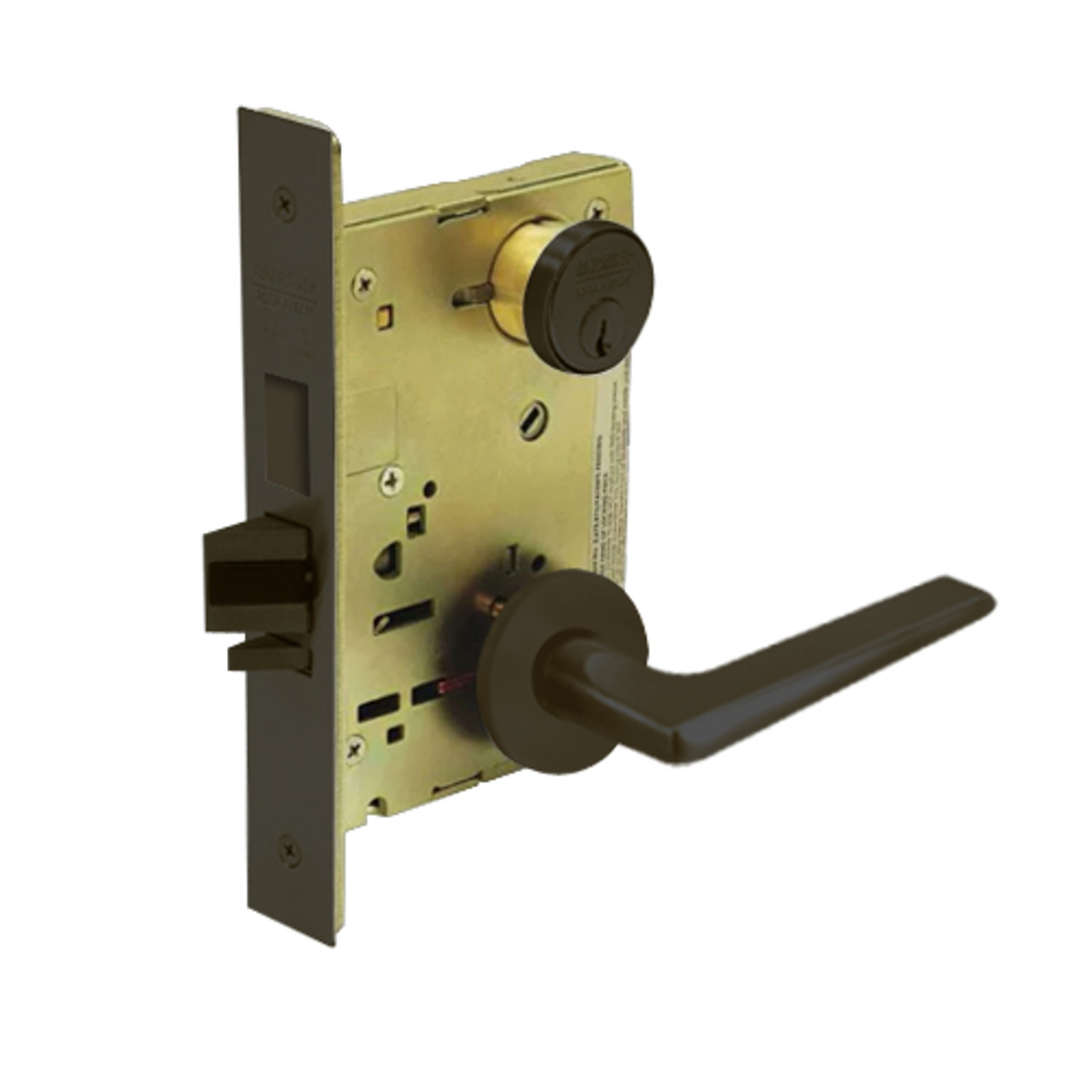

8248-LNF-10B Sargent 8200 Series Store Door Mortise Lock with LNF Lever Trim in Oxidized Dull Bronze Finish

The Sargent 8248-LNF-10B Store Door mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

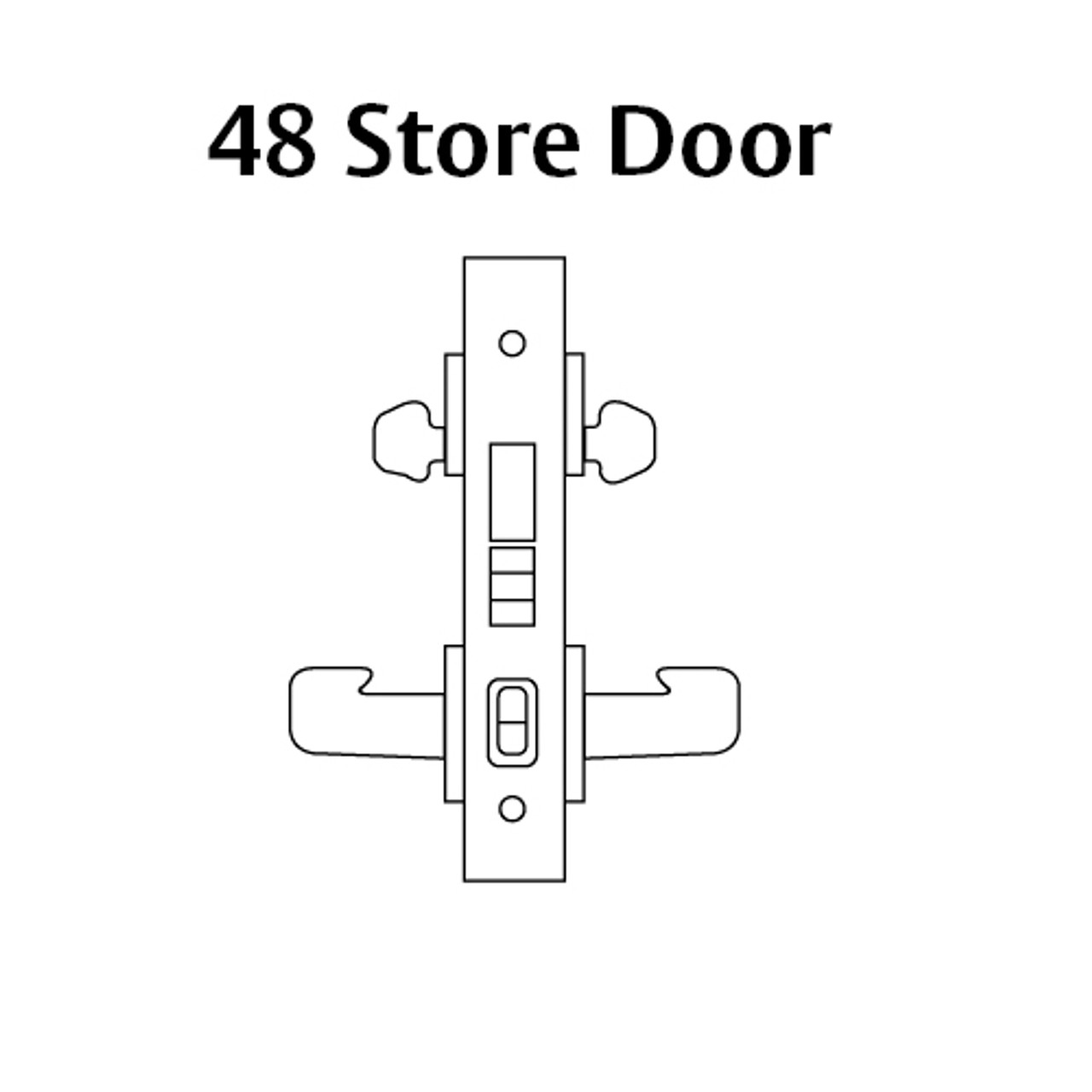

Store Door lock: Key from either side retracts and projects deadbolt. Key from either side retracts latchbolt. Trim outside is locked by toggle or projecting deadbolt and unlocked by toggle only. Trim inside (when deadbolt is projected) retracts latchbolt only, and outside trim remains locked.

Features and Benefits:

• Oxidized Dull Bronze finish
• Minimum stile: 4-1/2" (114mm)
• Backset: 2-3/4" (70mm) only
• Handing: Reversible in field
• Springs: High carbon steel
• Strike: ANSI Standard; curved lip
• Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
• F-lever design with LN rose
• Double cylinder with deadbolt
• Two, nickel silver keys are included
• Cylinder: 6-pin solid brass, LA keyway standard
• Door range: 1-3/4" (44mm) thick standard
