Product Description

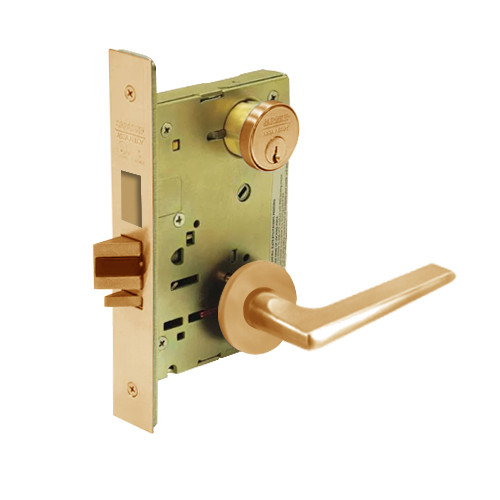

8252-LNF-10 Sargent 8200 Series Institutional Mortise Lock with LNF Lever Trim in Dull Bronze Finish

The Sargent 8252-LNF-10 Institutional mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Institutional lock: Key from either side retracts and projects deadbolt; Key from either side retracts latchbolt; Trim inside and out are always locked; Auxiliary deadlatch.

Features and Benefits:

• Dull Bronze finish
• Minimum stile: 4-1/2" (114mm)
• Backset: 2-3/4" (70mm) only
• Handing: Reversible in field
• Springs: High carbon steel
• Strike: ANSI Standard; curved lip
• Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
• F-lever design with LN rose
• Double cylinder with deadbolt
• Two, nickel silver keys are included
• Cylinder: 6-pin solid brass, LA keyway standard
• Door range: 1-3/4" (44mm) thick standard
