Product Description

8267-LNB-04 Sargent 8200 Series Institutional Privacy Mortise Lock with LNB Lever Trim in Satin Brass Finish

The Sargent 8267-LNB-04 Institutional Privacy mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

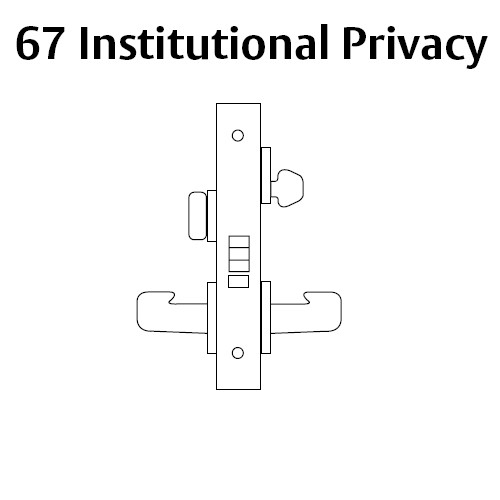

Institutional Privacy lock: Key outside retracts latchbolt, overriding thumbturn when held in locked position; Thumbturn inside locks and unlocks outside trim; Trim outside unlocks when the door closes or by operating trim inside; Trim inside always retracts latchbolt.

Features and Benefits:

• Satin Brass finish
• Minimum stile: 4-1/2" (114mm)
• Backset: 2-3/4" (70mm) only
• Handing: Reversible in field
• Springs: High carbon steel
• Strike: ANSI Standard; curved lip
• Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
• B-lever design with LN rose
• Single cylinder without deadbolt
• Two, nickel silver keys are included
• Cylinder: 6-pin solid brass, LA keyway standard
• Door range: 1-3/4" (44mm) thick standard
