Product Description

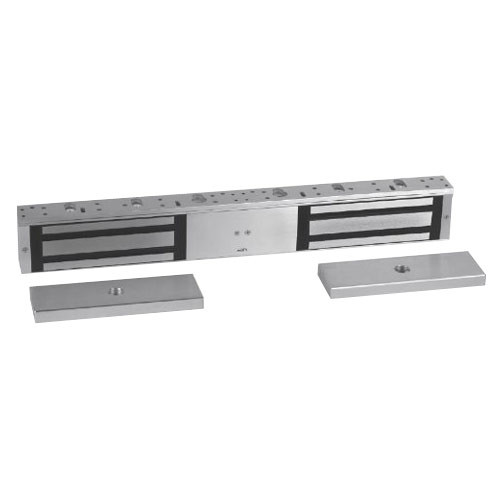

8320-2DSS-2SCS-28 RCI 8320 Series Double Outswinging Magnetic Lock with Door Status and Security Condition Sensor in Brushed Anodized Aluminum Finish

The RCI 8320-2DSS-2SCS-28 series is for pairs of outswinging magnetic doors application without mullion. These hard-working multi-purpose electromagnetic locks enhance building security and install quickly. The 8320 series models feature a built-in, adjustable time delay with instant unlock and delayed relock, which can be controlled by any standard switching device. The removable cavity cover offers quick, easy access to wiring.

Features and Benefits:

• Brushed Anodized Aluminum finish
• Adjustable keyhole mounting
• Low voltage detection
• Field selectable voltage - 12/24V DC
• Convenient plug-in wiring terminals
• Easy-access wiring cavity
• Low energy consumption
• No residual magnetism
• MOV surge protection
• Holding force: Two-point locking up to 1500 pounds each point
• Operating Temperature: -10 to 60° C -14 to 140° F
• The RCI 8320 series is certified to UL listed
• Include door status sensor and security condition sensor
• Built-in time delay (instant release with adjustable relock, programmable from 0-110 seconds)
