Product Description

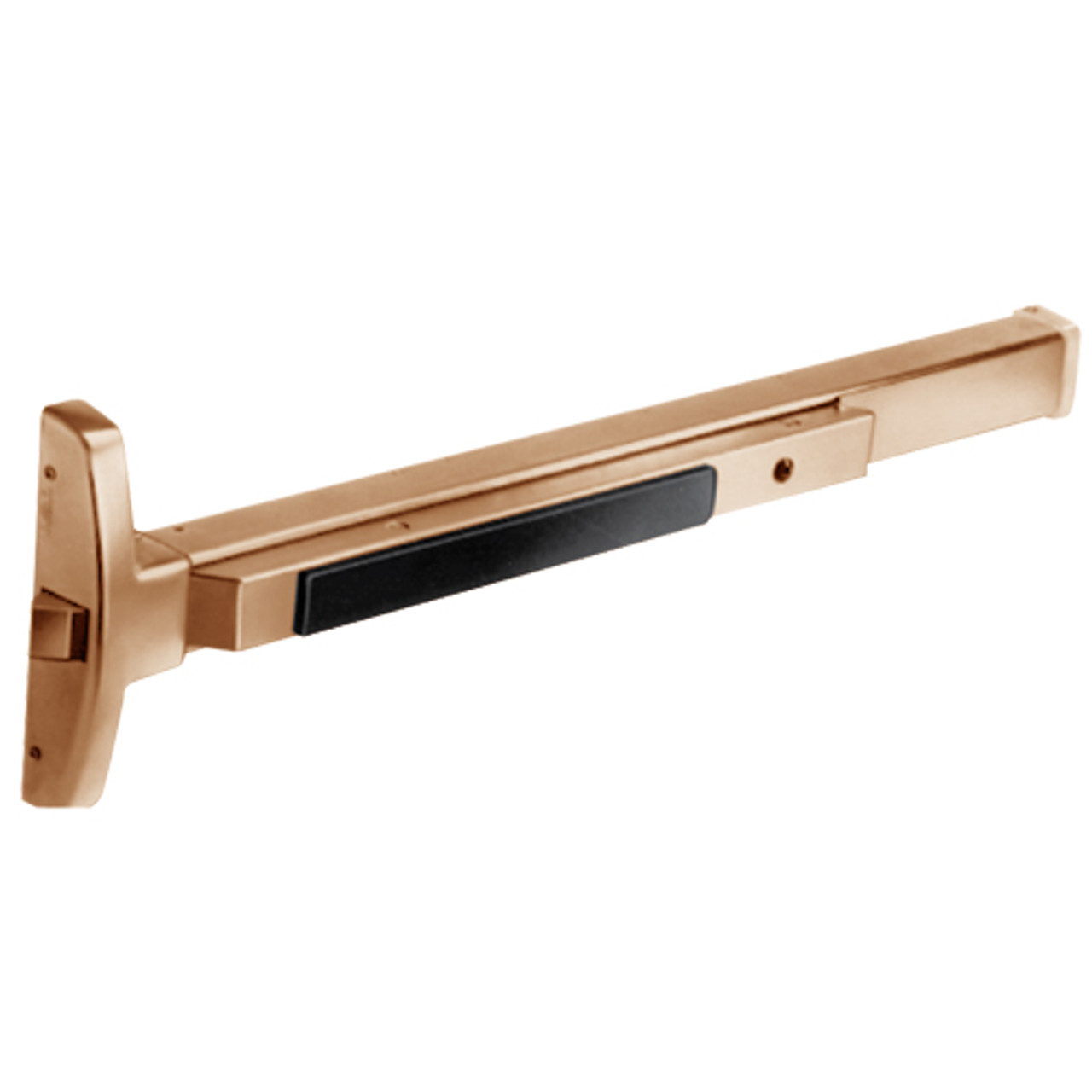

8510J-RHR-10 Sargent 80 Series Exit Only Narrow Stile Rim Exit Device in Satin Bronze Finish

The Sargent 8510J-RHR-10 exit device are used for the single and double door application with mullion. The 8500 series is designed for narrow stile applications and provide the best combination of simplicity, strength, durability, aesthetics and innovation. The 8500 series exit device are certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Satin Bronze finish
• Door thickness: Wood or metal 1-3/4" (44mm) minimum thickness
• Handing: Right handed
• J Rail for 37" to 42" door widths
• No cutting required for 42" door
• Non fire rated exit device
• For the single and double door applications with mullion
• Device centerline from finished floor: 41" (1041 mm) for standard applications

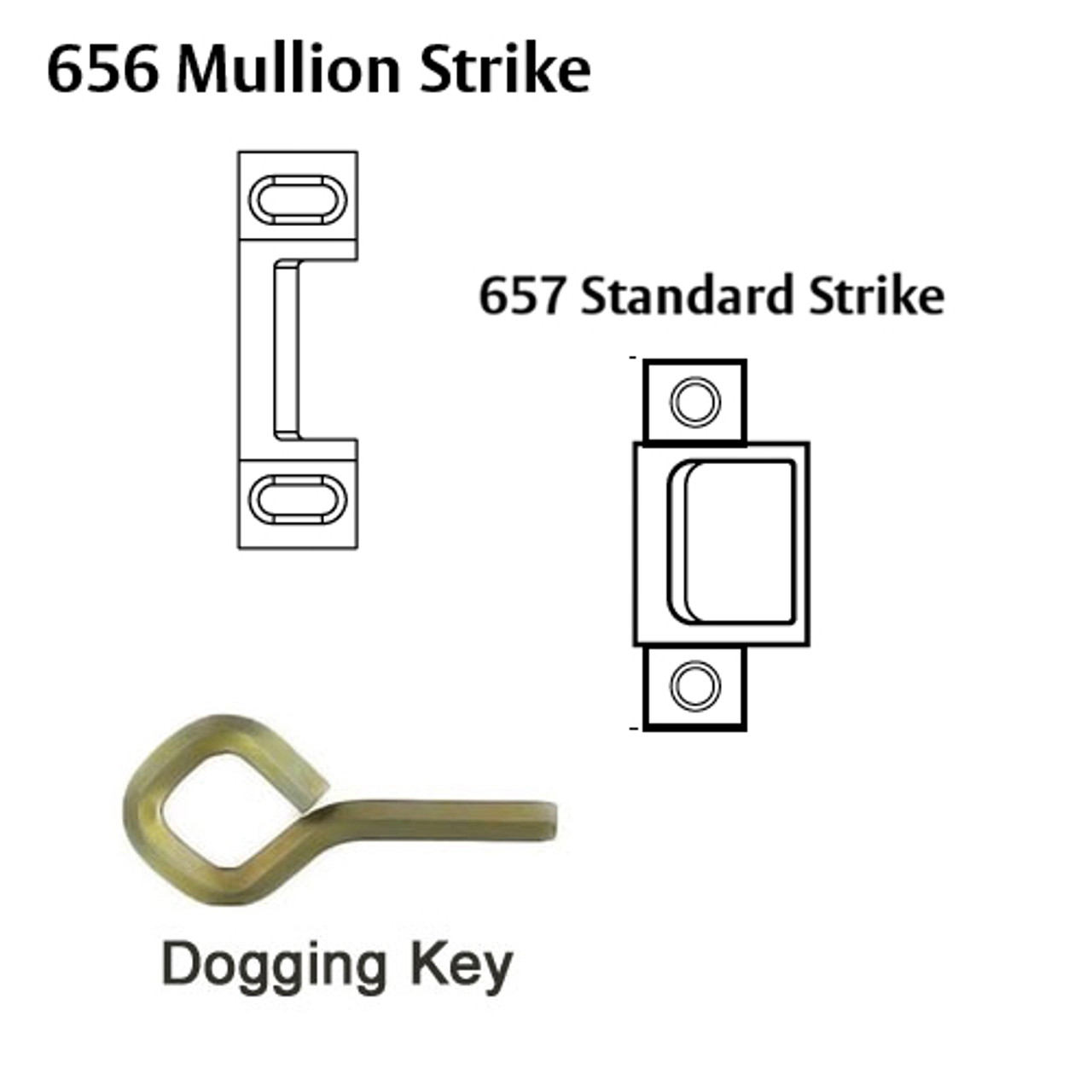

• Strike: 656 and 657 strike standard
• Dogging : Hex key dogging standard
• Mounting: Supplied standard with wood and machine screws
• LatchBolt: Stainless steel, 3/4" (19mm) throw
• Exit only - No outside operation
