Product Description

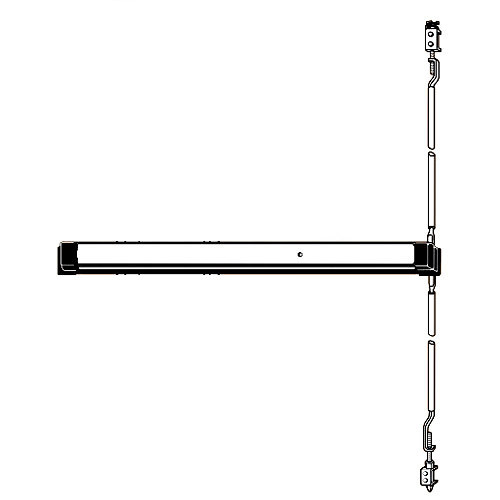

8600-42-US4 Adams Rite Narrow Stile Concealed Vertical Rod Exit Device in Satin Brass Finish

The 8600-42-US4 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Benefits and Features:

• Satin Brass Pushbar Finish
• Pushbar length: 42 inches
• Life safety
• Door Height: Standard unit adjustable for doors up to 66" above the selected bar height
• Door Thickness: Suits 1-3/4" standard up to 2-1/4"
• Stile Width: Minimum 2" Stile
• Projection: 2-5/8" when fully projected, 1-5/8" when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks the door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Standard rod bar
• Grade 1 strength
• Standard self-tapping screws fastener
• Standard dogging with hex key
• No monitoring switch feature
• 5 year limited manufacturer's warranty is included
