Product Description

8710E-RHR-10B Sargent 80 Series Exit Only Surface Vertical Rod Exit Device in Oil Rubbed Bronze Finish

The Sargent 8710E-RHR-10B exit device is used for the wood and metal door application. The 8700 Surface vertical rod exit device has two point latching (top and bottom of the door) and is adjustable through the center case. This series provides the best combination of simplicity, strength, durability, aesthetics and innovation. The 8700 series exit device is certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Oil Rubbed Bronze finish
• Door thickness: Wood or metal 1-3/4" (44mm) minimum thickness
• Handing: Right handed
• E Rail for 24" to 32" door widths
• No cutting required for 32" door
• Non fire rated exit device
• Single and double door applications
• Device centerline from finished floor: 41" (1041 mm) for standard applications

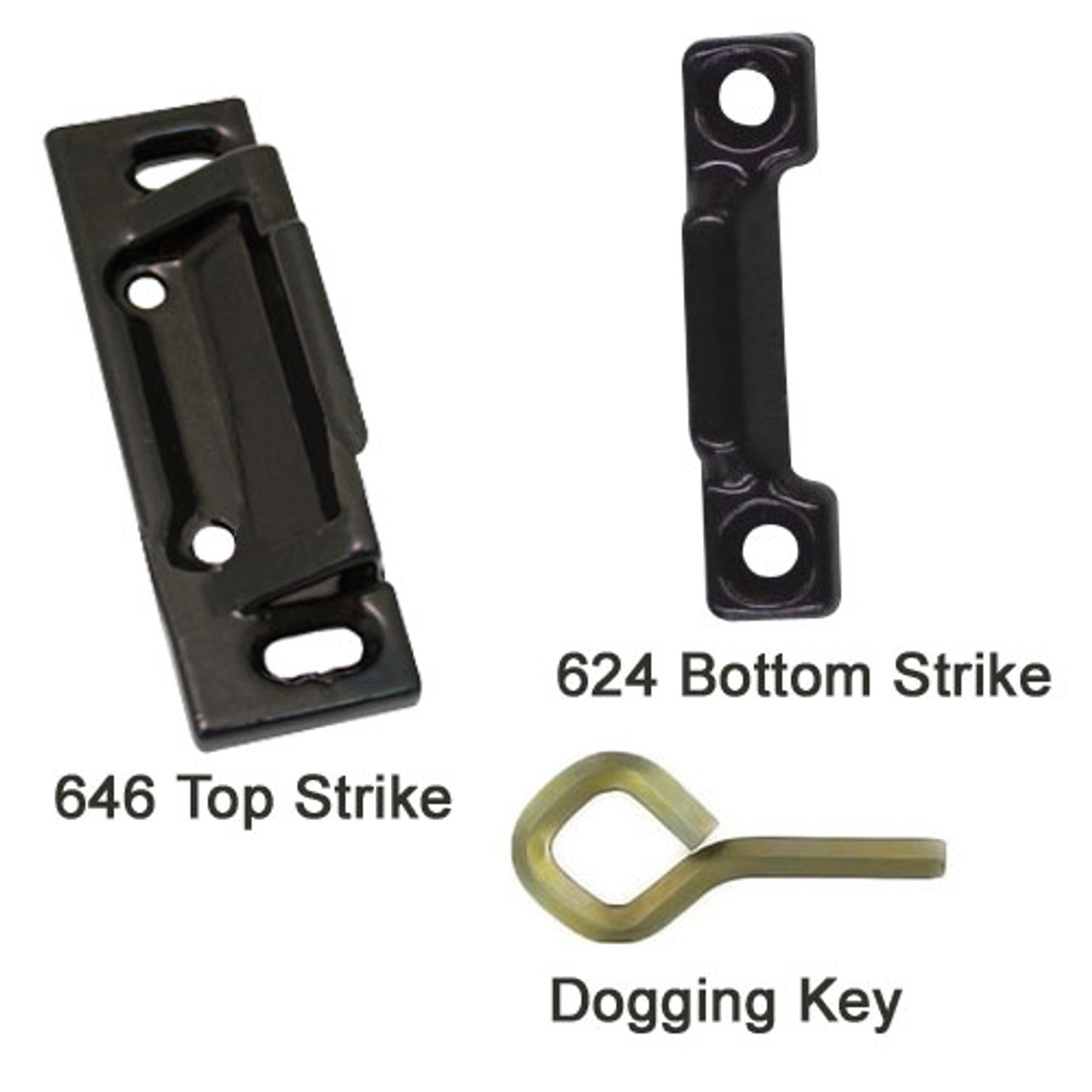

• Strike: 646 Top strike; 624 bottom strike
• Dogging : Hex key dogging standard
• Mounting: Supplied standard with wood and machine screws
• Center case dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Exit only - No outside operation
• Rods are 1/2" (13mm) brass, bronze or stainless steel
