Product Description

8810E-32 Sargent 80 Series Exit Only Rim Exit Device in Brass Finish

The Sargent 8810E-32 exit device is designed for standard width stile applications on wood and metal doors. The 8800 series provides the best combination of simplicity, strength, durability, aesthetics and innovation. The 8800 series exit device is certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Bright Stainless Steel finish
• Door thickness: Wood or metal 1-3/4" (44mm) minimum thickness
• Handing: Non handed
• E Rail for 24" to 32" door widths
• No cutting required for 32" door
• Non fire rated exit device
• Single and double door applications with a mullion
• Device centerline from finished floor: 41" (1041 mm) for standard applications

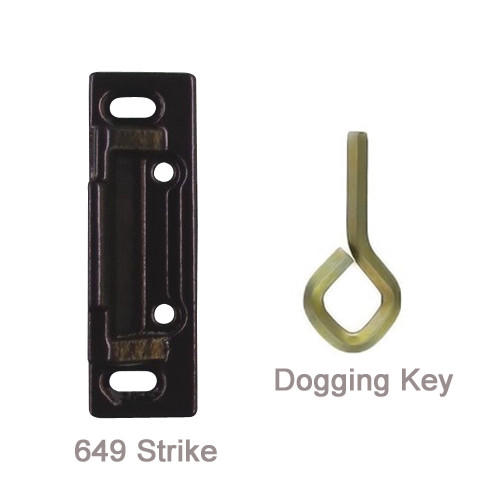

• Strike: 649 Standard black nylon coated
• Dogging : Hex key dogging standard
• Mounting: Supplied standard with wood and machine screws
• Center case dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Exit only - No outside operation
• Single point rim latching device
