Product Description

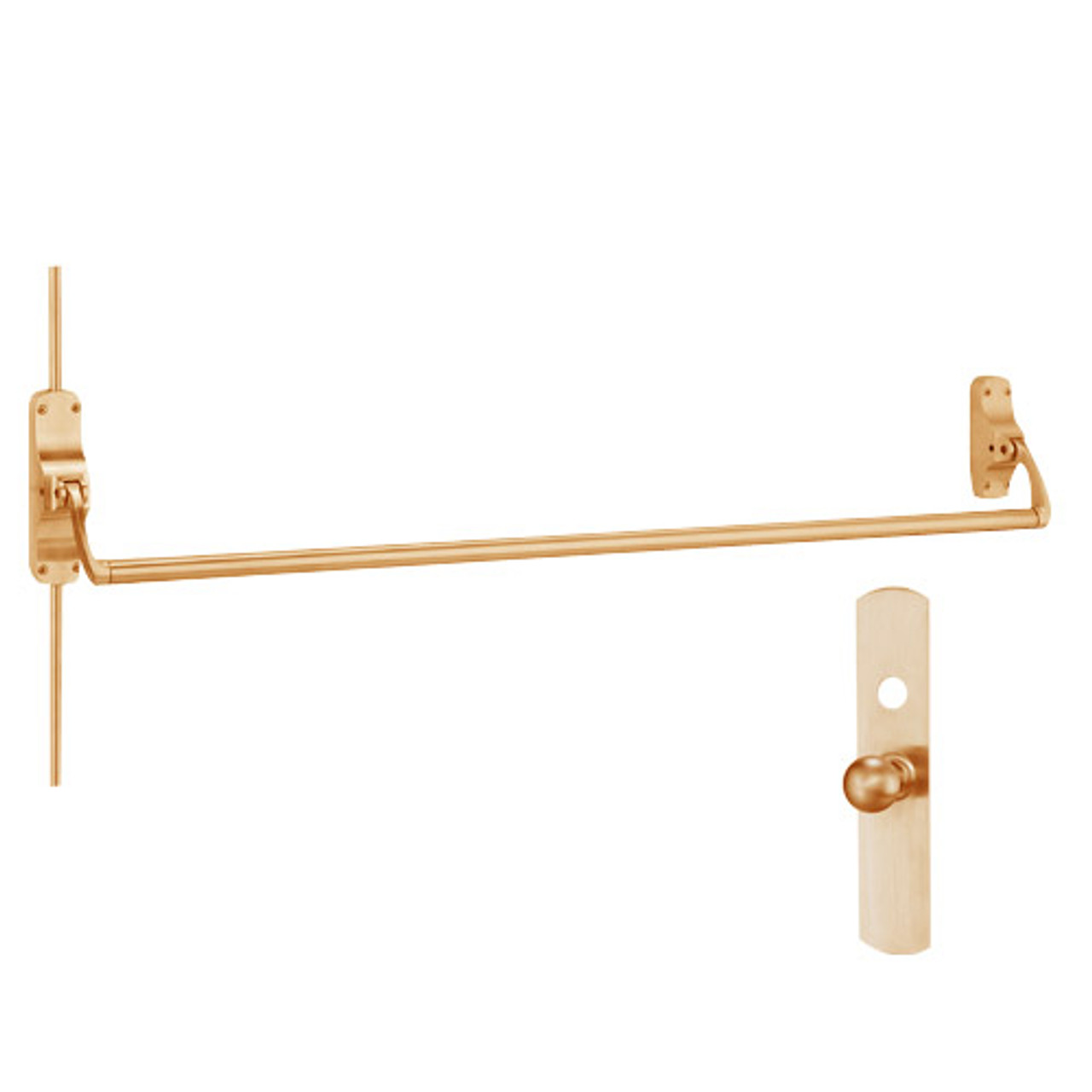

8827KNL-US10 Von Duprin 8827 Series with 880K Knob Night Latch Non Fire Rated Surface Vertical Rod Device in Satin Bronze Finish

The Von Duprin 8827KNL-US10 series of exit device for all types of single and double doors. The 8827 series is a traditional crossbar design with proven service on arduous applications. The 8827 series device is field sizeable, field reversible and fits door stiles as narrow as 2-1/2" (90 mm). Exit devices are a critical part of a door opening or access system and provides safe and reliable service. It is specifically designed for use in areas where critical treatment can be expected. All 8827 exit devices are UL listed for accident hazard installations and panic exit hardware, and are certified to ANSI A156.3, 2008, Grade 1.

Features and Benefits:

• Satin Bronze finish
• ANSI Function: 08
• Cylinder backset: 2-3/4" (70 mm)
• Includes 880K standard trim ANSI A156.3 (2008) Grade 1 certified
• Knob night latch trim function - key unlocks and locks
• Sex nuts and bolts are included
• Hex key dogging feature standard
• Crossbar length: 42" (1067 mm) with field sizeable
• Crossbar centerline to finished floor: 36-13/16" (935 mm) at center
• Device centerline: 39-13/16"
• Fasteners: Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal and wood doors
• All 8827 series exit devices are UL listed for panic exit hardware
• Strike: Top 299 - dull black, bottom 248L-4 and 304L - unfinished strikes included as always
• Latch bolt: 5/8" (16 mm) throw
• Crossbar tubing: 1" (25 mm) outside diameter
• Faceplate: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
• Fits door stiles as narrow as 2-1/2" (90 mm)
