Product Description

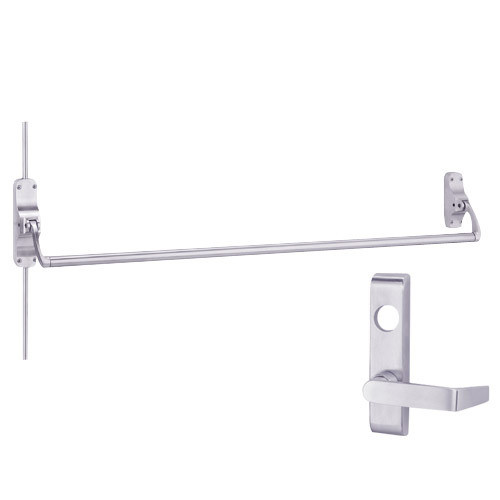

8827L-F-US26D-RHR Von Duprin 8827 Series with 373L Lever Right Handed Fire Rated Surface Vertical Rod Device in Satin Chrome Finish
The Von Duprin 8827L-F-US26D-RHR series of exit device for all types of 8' x 8' (2438 mm x 2438 mm) double doors. The 8827 series is a traditional crossbar design with proven service on arduous applications. The 8827 series device is field sizeable, field reversible and fits door stiles as narrow as 3-3/4" (95 mm). Exit devices are a critical part of a door opening or access system and provides safe and reliable service. It is specifically designed for use in areas where critical treatment can be expected. All 8827 exit devices are UL listed, 3 hours and fire rated exit hardware, and are certified to ANSI A156.3, 2008, Grade 1.
Features and Benefits:
- Satin Chrome finish
- ANSI Function: 08
- Handing: Right hand reversible
- Cylinder backset: 2-3/4" (70 mm)
- Includes 373L standard trim ANSI A156.3 (2008) Grade 1 certified
- Lever trim function - key unlocks and locks
- Sex nuts and bolts are included
- Crossbar length: 42" (1067 mm) with field sizeable
- Crossbar centerline to finished floor: 36-13/16" (935 mm) at center
- Device centerline: 39-13/16"
- Fasteners: Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal and wood doors
- All 8827 series exit devices are UL listed for fire rated exit hardware
- Strike: Bottom - 304L strikes included as always
- Latch bolt: 5/8" (16 mm) throw
- Crossbar tubing: 1" (25 mm) outside diameter
- Faceplate: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
- Fits door stiles as narrow as 3-3/4" (95 mm)
