Product Description

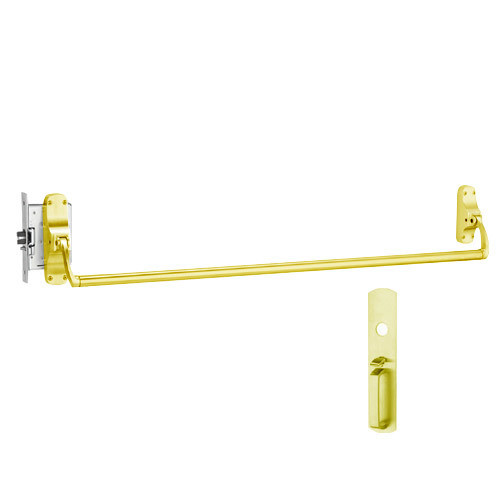

8875TP-F-US3-RHR Von Duprin 8875 Series with 880TP-M Thumbpiece Fire Rated Mortise Lock Device in Bright Brass Finish

The Von Duprin 8875TP-F-US3-RHR series of exit device for all types of 4' x 8' (1219 mm x 2438 mm) single and 8' x 8' (2438 mm x 2438 mm) double doors. The 8875 series is a traditional crossbar design with proven service on arduous applications. The 8875 series device is field sizeable and fits door stiles as narrow as 4-3/4" (121 mm). Exit devices are a critical part of a door opening or access system and provides safe and reliable service. It is specifically designed for use in areas where critical treatment can be expected and it has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. All 8875 exit devices are UL listed, 3 hours and fire rated exit hardware, and are certified to ANSI A156.3, 2008, Grade 1.

Features and Benefits:

• Bright Brass finish
• ANSI Function: 05
• Cylinder backset: 2-3/4" (70 mm)
• Handing: Right handed
• Includes 880TP-M standard trim ANSI A156.3 (2008) Grade 1 certified
• Thumbpiece trim function - key unlocks and locks
• Sex nuts and bolts are included
• Crossbar length: 42" (1067 mm) with field sizeable
• Crossbar centerline to finished floor: 36-13/16" (935 mm) at center
• Device centerline: 39-13/16"
• Latch bolt height to finished floor: 40-3/32" (1018 mm) at center
• Fasteners: Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal and wood doors
• Strike: 575 - dull black strikes included as always
• Crossbar tubing: 1" (25 mm) outside diameter
• Faceplate: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
• Fits door stiles as narrow as 4-3/4" (121 mm)
• All 8875 series exit devices are UL listed for fire rated exit hardware
• Latch bolt: Deadlocking - 3/4" (19mm) throw latch bolts with field reversible without removing the lock from the door
