Product Description

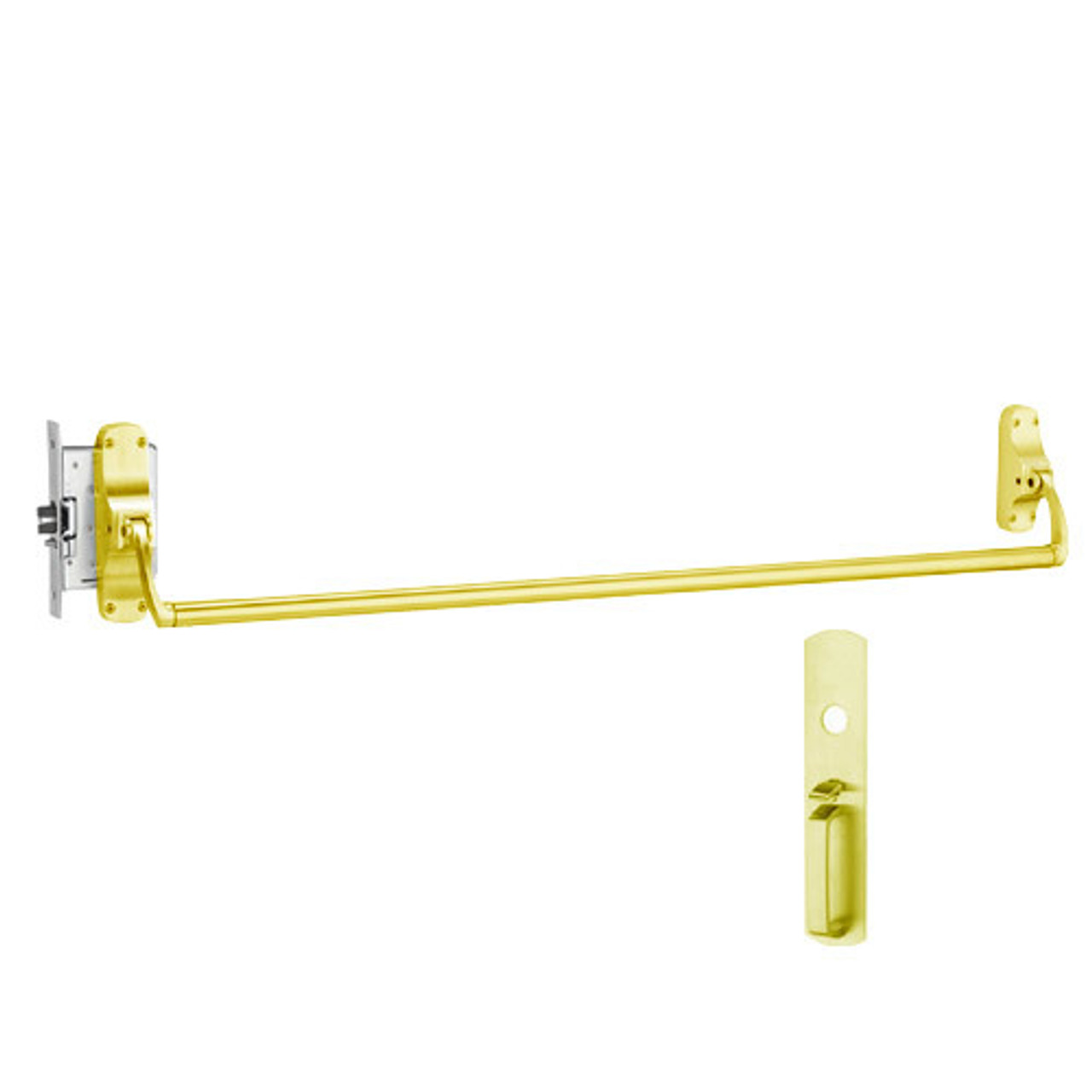

8875TP-US3-RHR Von Duprin 8875 Series with 880TP-M Thumbpiece Non Fire Rated Mortise Lock Device in Bright Brass Finish
The Von Duprin 8875TP-US3-RHR series of exit device for all types of single and double doors. The 8875 Series is a traditional crossbar design with proven service on arduous applications. The 8875 series device is field sizeable and fits door stiles as narrow as 4-3/4" (121 mm). Exit devices are a critical part of a door opening or access system and provides safe and reliable service. It is specifically designed for use in areas where critical treatment can be expected and it has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. All 8875 exit devices are UL listed for accident hazard installations and panic exit hardware, and are certified to ANSI A156.3, 2008, Grade 1.
Features and Benefits:
- Bright Brass finish
- ANSI Function: 05
- Cylinder backset: 2-3/4" (70 mm)
- Handing: Right handed
- Includes 880TP-M standard trim ANSI A156.3 (2008) Grade 1 certified
- Thumbpiece trim function - key unlocks and locks
- Sex nuts and bolts are included
- Hex key dogging feature standard
- Crossbar length: 42" (1067 mm) with field sizeable
- Crossbar centerline to finished floor: 36-13/16" (935 mm) at center
- Device centerline: 39-13/16"
- Latch bolt height to finished floor: 40-3/32" (1018 mm) at center
- Fasteners: Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal and wood doors
- Strike: 575 - dull black strikes included as always
- Crossbar tubing: 1" (25 mm) outside diameter
- Faceplate: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
- Fits door stiles as narrow as 4-3/4" (121 mm)
- All 8875 series exit devices are UL listed for panic exit hardware
- Latch bolt: Deadlocking - 3/4" (19mm) throw with anti-friction latch bolt which is field reversible without removing the lock from the door
