Product Description

8888F-04 Sargent 80 Series Multi-Function Rim Exit Device in Satin Brass Finish

The Sargent 8888F-04 exit device is designed for standard width stile applications on wood and metal doors. The 8888 series provides the best combination of simplicity, strength, durability, aesthetics and innovation. The 8888 series exit device is certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Satin Brass finish
• Door thickness: Wood or metal 1-3/4" (44mm) minimum thickness
• Handing: Non handed
• F Rail for 33" to 36" door widths
• No cutting required for 36" door
• Non fire rated exit device
• Single and double door applications with a mullion
• Device centerline from finished floor: 41" (1041 mm) for standard applications

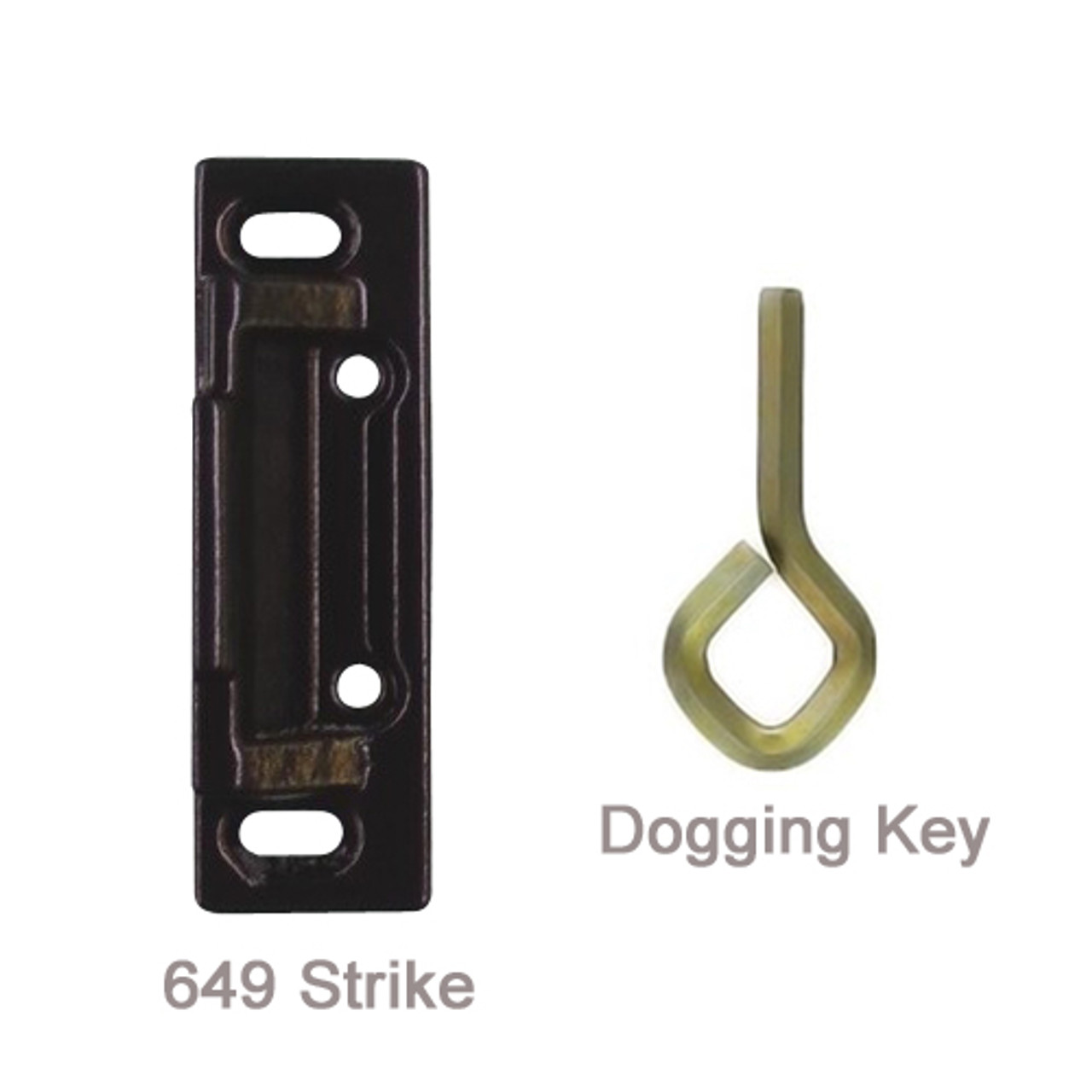

• Strike: 649 Standard black nylon coated
• Dogging : Hex key dogging standard
• Mounting: Supplied standard with wood and machine screws
• Center case dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
