Product Description

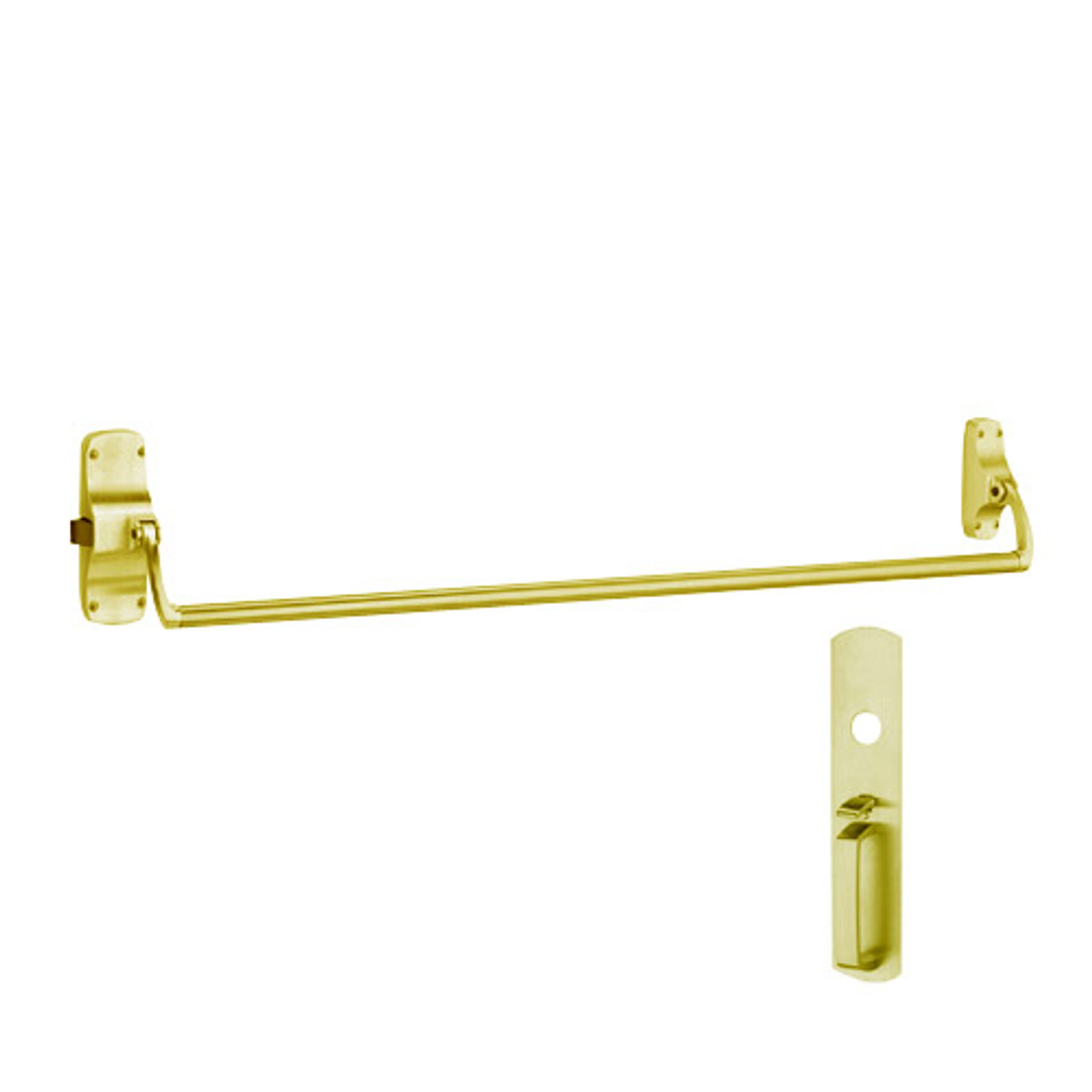

88TP-US4 Von Duprin 88 Series with 880TP Thumbpiece Non Fire Rated Rim Exit Device in Satin Brass Finish

The Von Duprin 88TP-US4 series of exit device for all types of single and double doors with mullion. The 88-Series is a traditional crossbar design with proven service on arduous applications. The 88 series device is field reversible and field sizeable and exit devices are a critical part of a door opening or access system and provides safe and reliable service. It is specifically designed for use in areas where critical treatment can be expected. All 88 exit devices are UL listed for accident hazard and panic exit hardware, and are certified to ANSI A156.3, 2008, Grade 1.

Features and Benefits:

• Satin Brass finish
• ANSI Function: 05
• Cylinders and sex bolts are not included
• Includes 880TP standard trim ANSI A156.3 (2008) Grade 1 certified
• Thumbpiece trim function - key unlocks and locks
• Hex key dogging feature standard
• Crossbar length: 42" (1067 mm) with field sizeable
• Crossbar height to finished floor: 36-13/16" (935 mm) at center
• Device centerline: 39-13/16"
• All necessary mounting fasteners are included
• All 88 series exit devices are UL listed for panic exit hardware
• Strike: 299 - dull black strikes included as always
• Latch bolt: 3/4" (19 mm), throw
• Crossbar tubing: 1" (25 mm) outside diameter
