Product Description

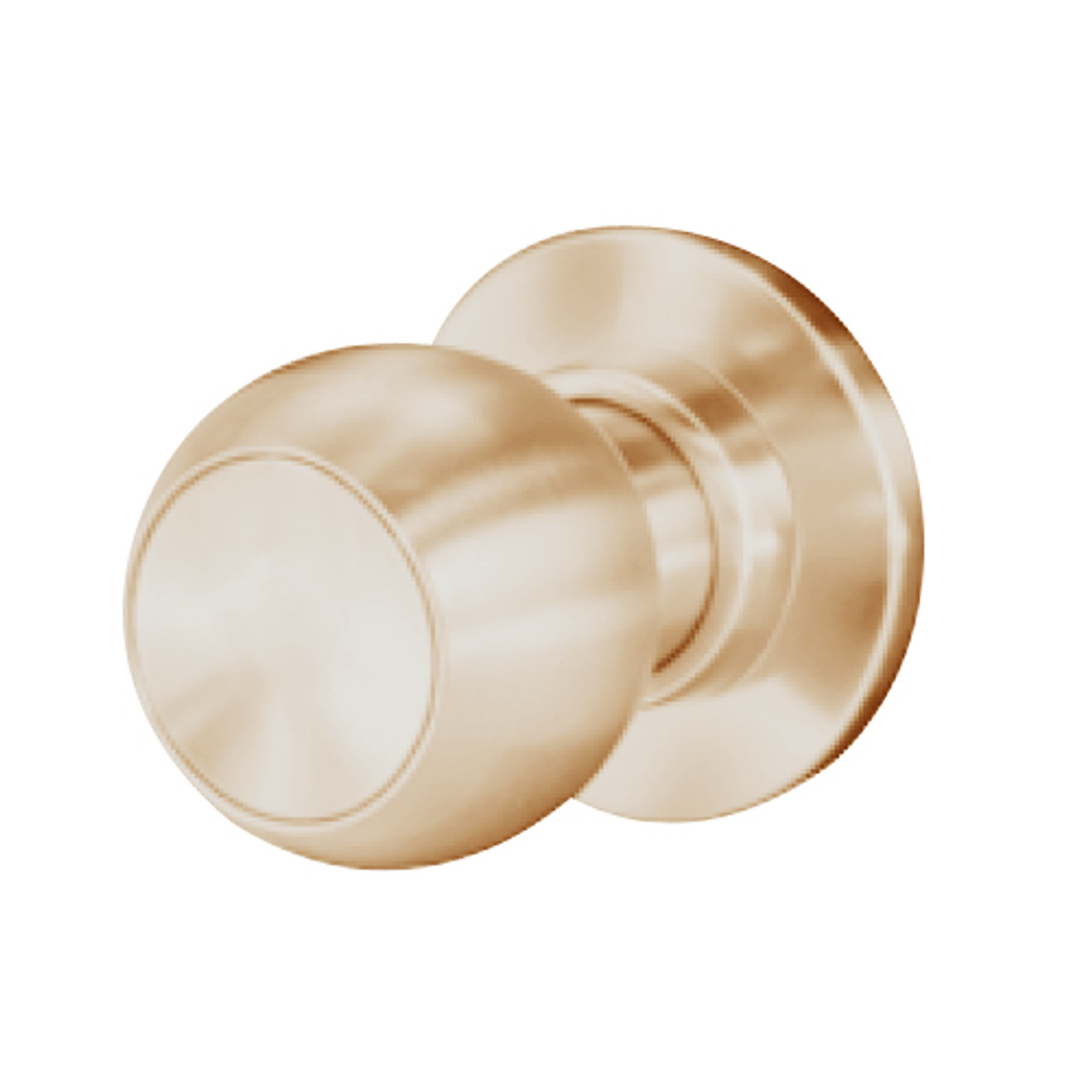

8K30LL4CS3612 Best 8K Series Hospital Privacy Heavy Duty Cylindrical Knob Locks with Round Style in Satin Bronze Finish
The Best 8K30LL4CS3612 Series cylindrical locks offer quick, economical re-keying capabilities with the best original interchangeable core. Long lasting quality is evident in the design and composition of the Best 8K Series locks. The BEST 8K Series is constructed of steel or brass to ensure the overall strength and durability of the lock. The Best 8K series are listed by the BHMA for A156.2, Series 4000, Grade 1.

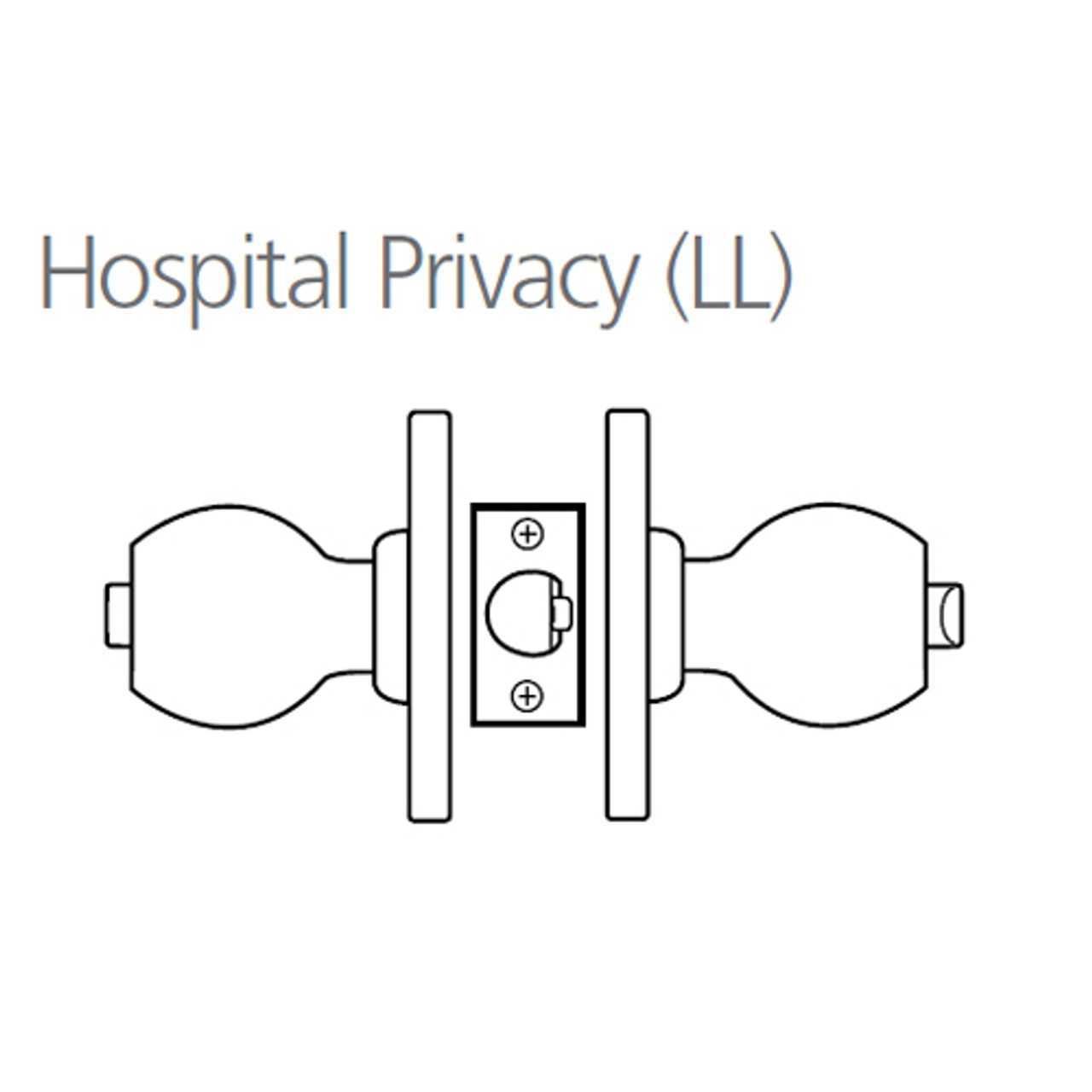

Hospital Privacy: Latch operated by rotating the inside knob or rotating the outside knob only when the inside push button is out. Outside knob locked by pushing the inside button and unlocked by turning the turn button in the outside knob, rotating the inside knob or closing the door. Inside knob always unlocked.
Features and Benefits:
- Satin Bronze finish
- Backset: 2-3/4" standard
- Handing: Reversible
- Non keyed function
- Roses: C - 2-9/16" concave
- Knobs: Solid brass or bronze in round style.
- Door thickness: 1-3/8" to 2" Standard
- Chassis: 2-1/16" diameter to fit 2-1/8" hole in door.
- Latch: 9/16" throw. Front 2-1/4 x 11/8" beveled. Latch housing fits 1" hole in edge of door.
- Strike: S3 - 4-7/8" x 1-1/4" with curved lip and box available (ANSI A115.2)
- Long bearing length in chassis for smooth, wear resistant operation.
