Product Description

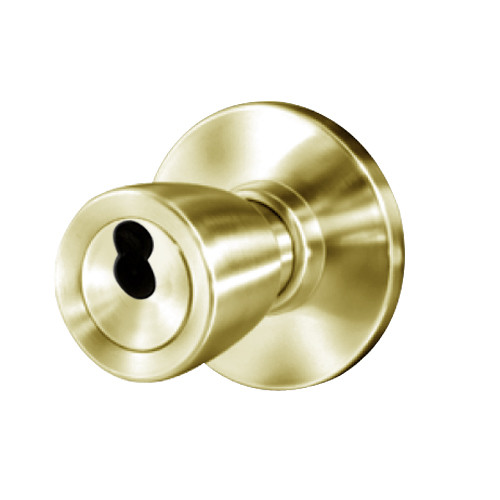

8K47XD6AS3606 Best 8K Series Special Heavy Duty Cylindrical Knob Locks with Tulip Style in Satin Brass Finish

The Best 8K47XD6AS3606 Series cylindrical locks offer quick, economical re-keying capabilities with the best original interchangeable core. Long lasting quality is evident in the design and composition of the Best 8K Series locks. The BEST 8K Series is constructed of steel or brass to ensure the overall strength and durability of the lock. The Best 8K series are listed by the BHMA for A156.2, Series 4000, Grade 1.

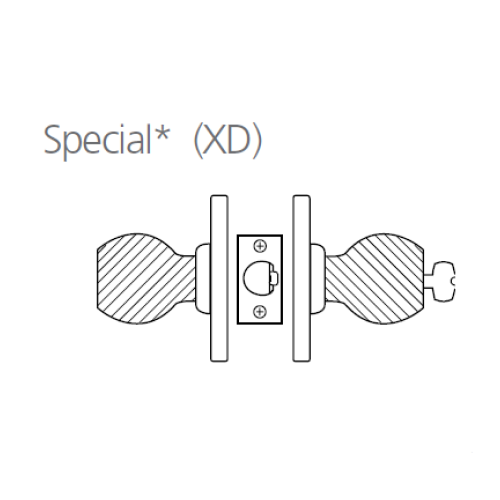

Special Lock: Latch operated by turning the key in the inside knob. Outside knob always locked. Inside knob can not be locked, always unlocked.

Features and Benefits:

• Satin Brass finish
• Backset: 3-3/4"
• Handing: Reversible
• Single keyed function
• Core is not included
• Core housing: 7-pin housing; accepts all BEST cores
• Roses: A - 3-3/8" concave
• Knobs: Solid brass or bronze in tulip style.
• Door thickness: 1-3/8" to 2" Standard
• Chassis: 2-1/16" diameter to fit 2-1/8" hole in door.
• Latch: 9/16" throw. Front 2-1/4 x 11/8" beveled. Latch housing fits 1" hole in edge of door.
• Strike: S3 - 4-7/8" x 1-1/4" with curved lip and box available (ANSI A115.2)
• Long bearing length in chassis for smooth, wear resistant operation.
