Product Description

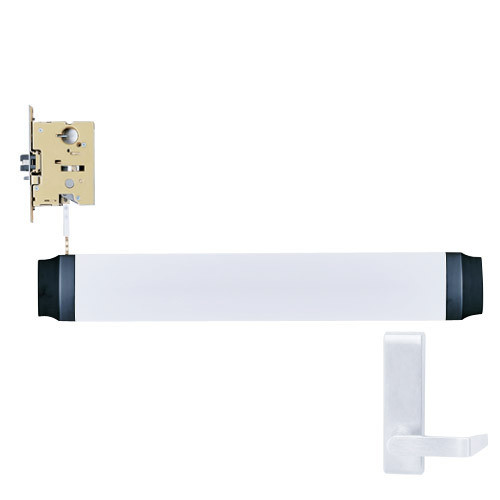

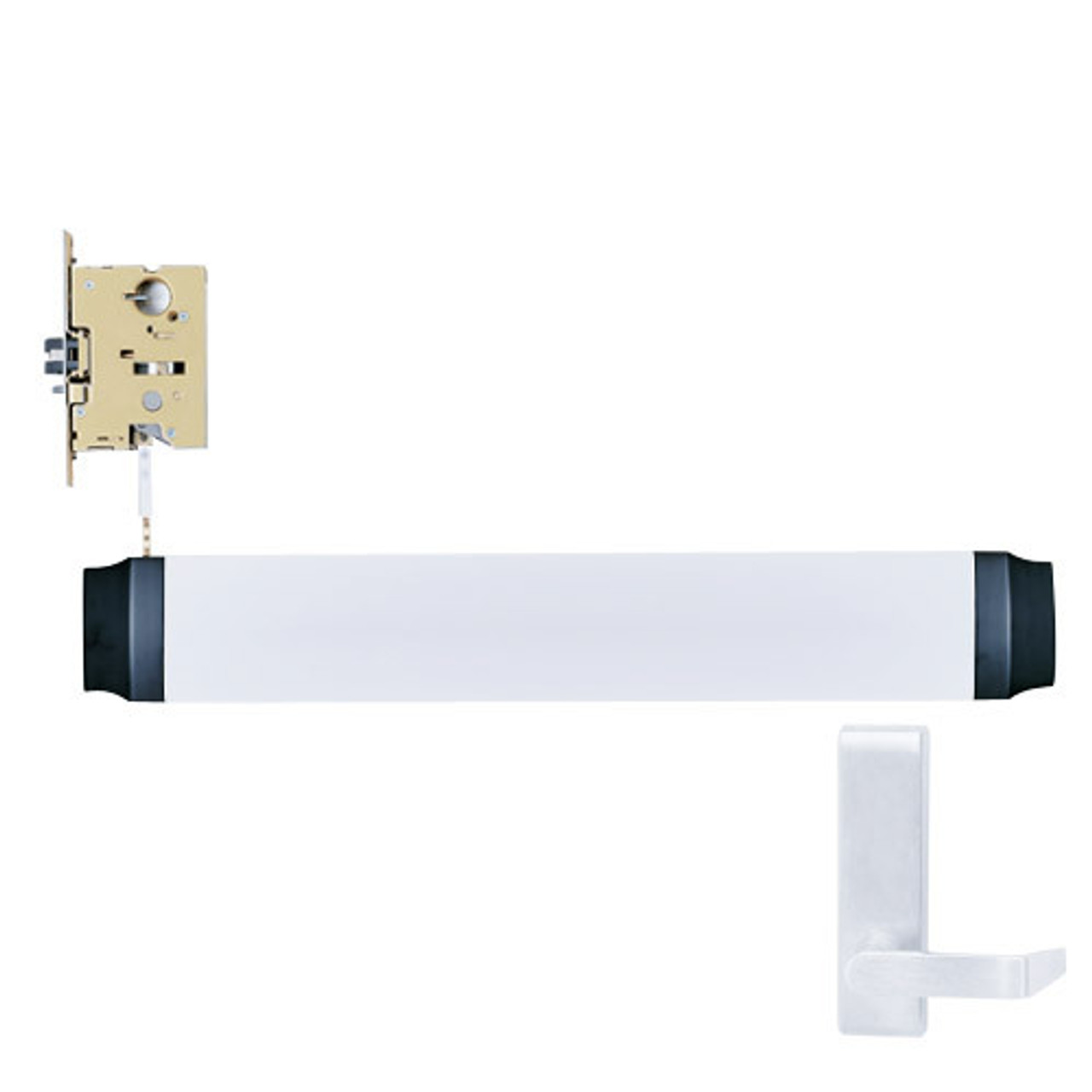

9475L-BE-US26-RHR Von Duprin 9475 Series with 940L-BE Lever Blank Escutcheon Non Fire Rated Mortise Lock Device in Bright Chrome Finish
The Von Duprin 9475L-BE-US26-RHR series of exit device for use on factory prepped steel doors, not available for wood doors. The 9475 series fully integrated within a door and combines a clean, tasteful appearance with von duprin's unrivaled standards of durability and performance. The 9475 series exit device is for reliable operation and longlasting durability and the streamlined, extruded aluminum pushpad is uniquely designed to exhibit grace under pressure. All 9475 exit devices are UL listed for panic exit hardware, and are certified to ANSI/BHMA A156.3, 2008, Grade 1. Its heavy duty construction and simple, yet effective mechanism are backed by traditional von duprin device.
The 9475 series has a "smooth mechanism case"
Features and Benefits:
- Bright Chrome finish
- ANSI Function: 14
- Handing: Right hand reversible
- Cylinders are not included
- Includes 940L-BE standard trim ANSI/BHMA A156.3 Grade 1 certified
- Lever blank escutcheon trim function - always operable
- Hex key dogging feature standard
- Device lengths: 2'10" up to 4' for 30-5/32" device
- Mortise lock centerline from finished floor: 48-1/8" (1222 mm)
- Fasteners: Included for surface mounting to recessed door prep and through bolting to trim
- All 9475 series exit devices are UL listed for panic exit hardware
- Strike: 575 - dull black strikes included as always
- Latch bolt: 3/4" (19 mm) with anti-friction
