Product Description

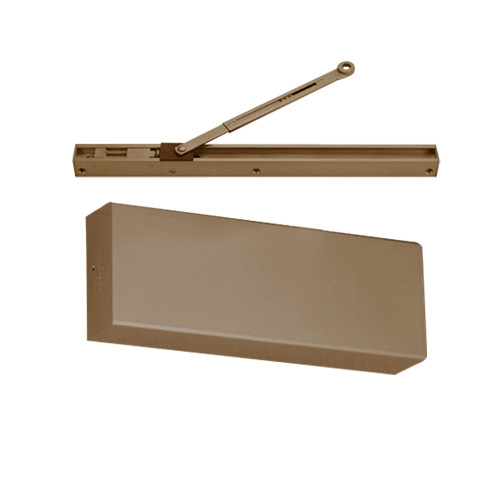

9500STDA-691 Norton 9500 Series Non-Hold Open Cast Iron Door Closer with Pull Side Slide Track in Dull Bronze Finish

The Norton 9500STDA-691 cast iron door closer is used for interior or exterior doors and is ideal for high use openings. The 9500 series Cast Iron door closer offers the durability, flexibility and strength required to meet the needs of your facility. The Norton 9500 Series door closers are certified ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Dull Bronze finish
• Non hold open
• Handing: Non handed
• With the Delayed action
• Adjustable size 1 thru 6

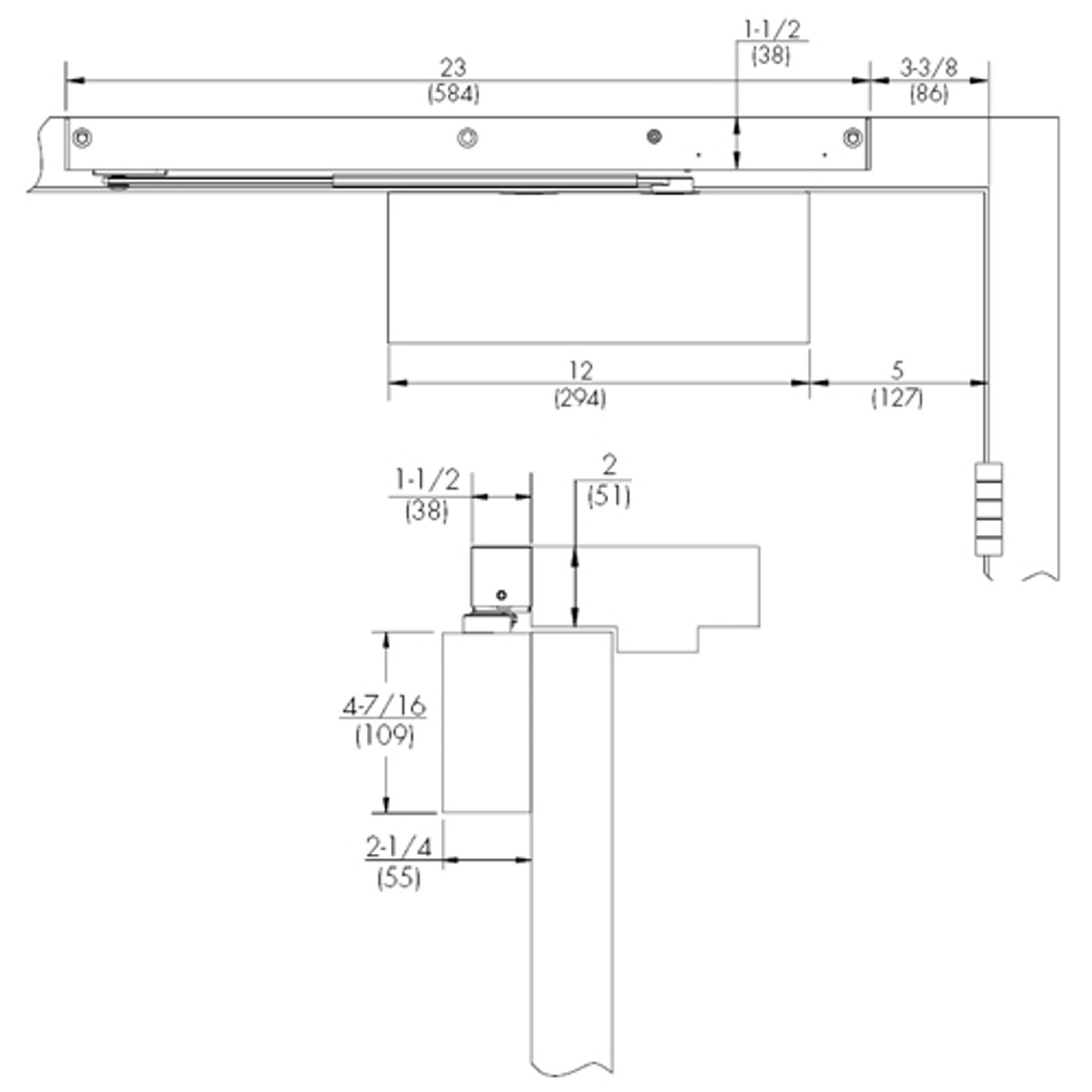

• Projection: 2-1/4" (57mm)
• Diameter piston: 1-1/2" (38mm)
• Cast iron closer body
• Rack and pinion design
• 5/8" (16mm) diameter pinion journals
• Closer mounting plate for easy installation
• Molded ABS plastic cover is included
• Exceeds 25 million cycles (witnessed and verified by U.L.)
• Slide tracks: Pull side mounting
• Standard, separate and independent, latch, sweep and backcheck intensity valves
