Product Description

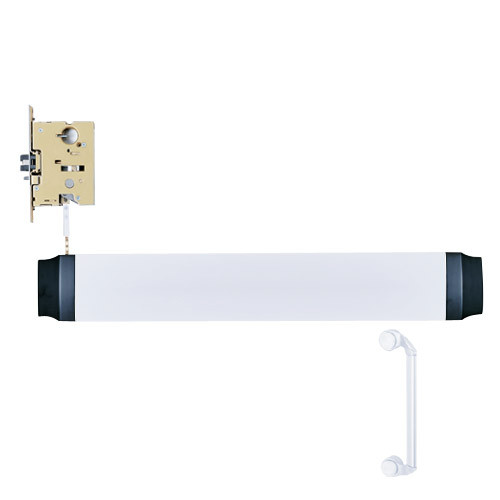

9575DT-US4 Von Duprin 9575 Series with 550DT Dummy Trim Non Fire Rated Mortise Lock Device in Satin Brass Finish
The Von Duprin 9575DT-US4 series of exit device for use on factory prepped steel doors, not available for wood doors. The 9575 series fully integrated within a door and combines a clean, tasteful appearance with von duprin's unrivaled standards of durability and performance. The 9575 series exit device is for reliable operation and longlasting durability and the streamlined, extruded aluminum pushpad is uniquely designed to exhibit grace under pressure. All 9575 exit devices are UL listed for panic exit hardware, and are certified to ANSI/BHMA A156.3, 2008, Grade 1. Its heavy duty construction and simple, yet effective mechanism are backed by traditional von duprin device.
The 9575 series has a "grooved mechanism case"
Features and Benefits:
- Satin Brass finish
- ANSI Function: 02
- Cylinders are not included
- Includes 550DT standard trim ANSI/BHMA A156.3 Grade 1 certified
- Dummy trim function - pull when dogged
- Hex key dogging feature standard
- Device lengths: 2'10" up to 4' for 30-5/32" device
- Mortise lock centerline from finished floor: 48-1/8" (1222 mm)
- Fasteners: Included for surface mounting to recessed door prep and through bolting to trim
- All 9575 series exit devices are UL listed for panic exit hardware
- Strike: 575 - dull black strikes included as always
- Latch bolt: 3/4" (19 mm) with anti-friction
