Product Description

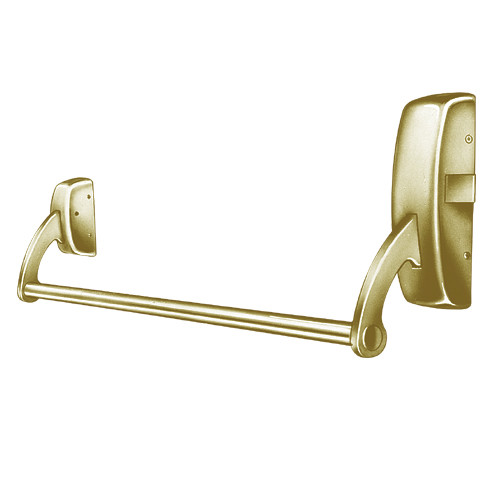

9810-LHR-04 Sargent 90 Series Exit Only Rim Exit Device in Satin Brass Finish

The Sargent 9810-LHR-04 exit device is designed for single door and pairs of doors where a narrow stile application is required. All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product. The 9800 series exit device is certified to the ANSI/BHMA Standard 156.3, 2008 Grade 1.

Features and Benefits:

• Satin Brass finish
• Door thickness: Wood or metal 1-3/4" (44mm) minimum thickness
• Handing: Left handed
• Strike is a surface applied
• Non fire rated exit device
• For the wood and metal door applications

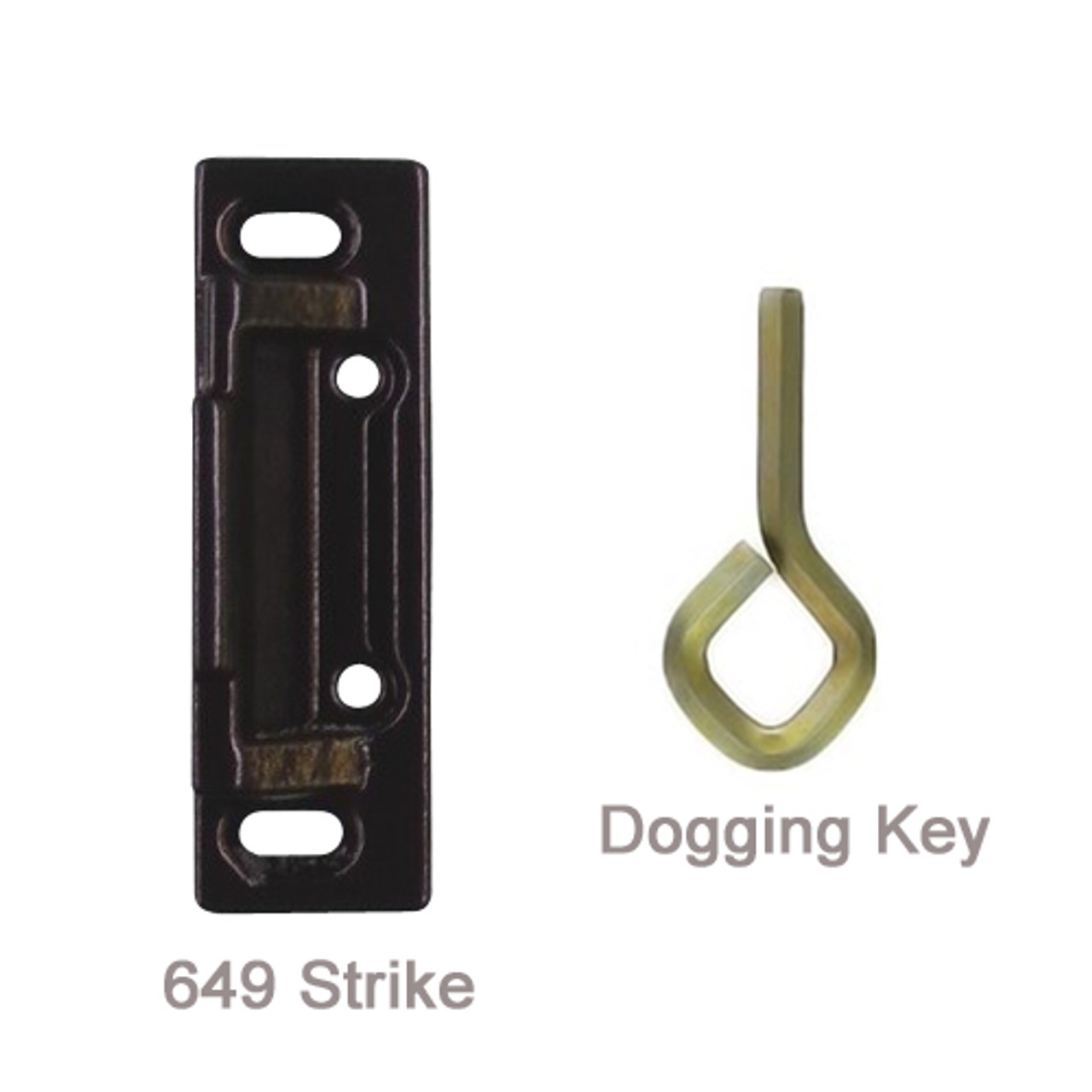

• Strike: 649 strike standard
• Dogging : Standard Allen key dogging
• Chassis: Nonferrous alloy
• Mounting: Supplied standard with wood and machine screws
• Crossbar: 1" brass, bronze and stainless steel tubing
• Exit only - No outside operation
