Product Description

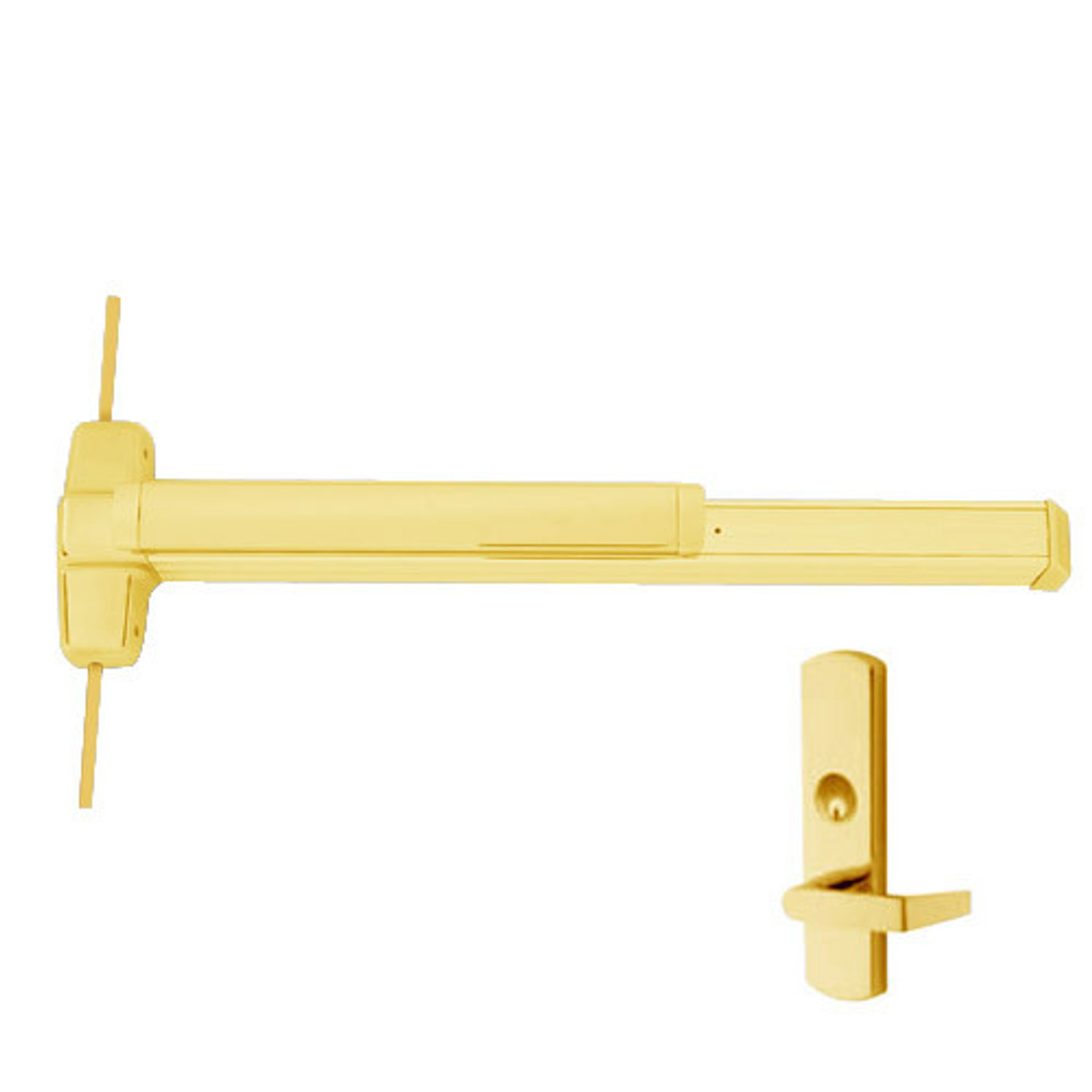

9827L-F-US3-2-RHR Von Duprin 9827 Series with 996L Lever Right Handed Fire Rated Vertical Rod Exit Device in Bright Brass Finish

This device is for a 24" door

The Von Duprin 9827L-F-US3-2-RHR series of exit device for pairs of doors up to 8' x 10' (2438mm x 3048mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9827 vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9827 series has a "smooth mechanism case"

Features and Benefits:

• Bright Brass Finish
• Lever Trim - Key Locks and Unlocks
• Handing: Right handed
• ANSI Function: 08
• Included 299F, 304L strikes and sex bolts for latches
• Device lengths: 2 feet (610mm) i.e 2' device for 2' door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood and metal doors and 325 SNB for top and bottom latch
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9827 series exit devices are UL listed for fire exit hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
• Strike: Top- 299F (499F LBR) strike dull black and bottom- 304L unfinished strikes included as always
• No mechanical dogging
• Included strikes and sex bolts for latches
• Includes 996L standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
• Cylinder must be ordered separately
• Device centerline from finished floor: 39-5/8" (1006 mm)
