Product Description

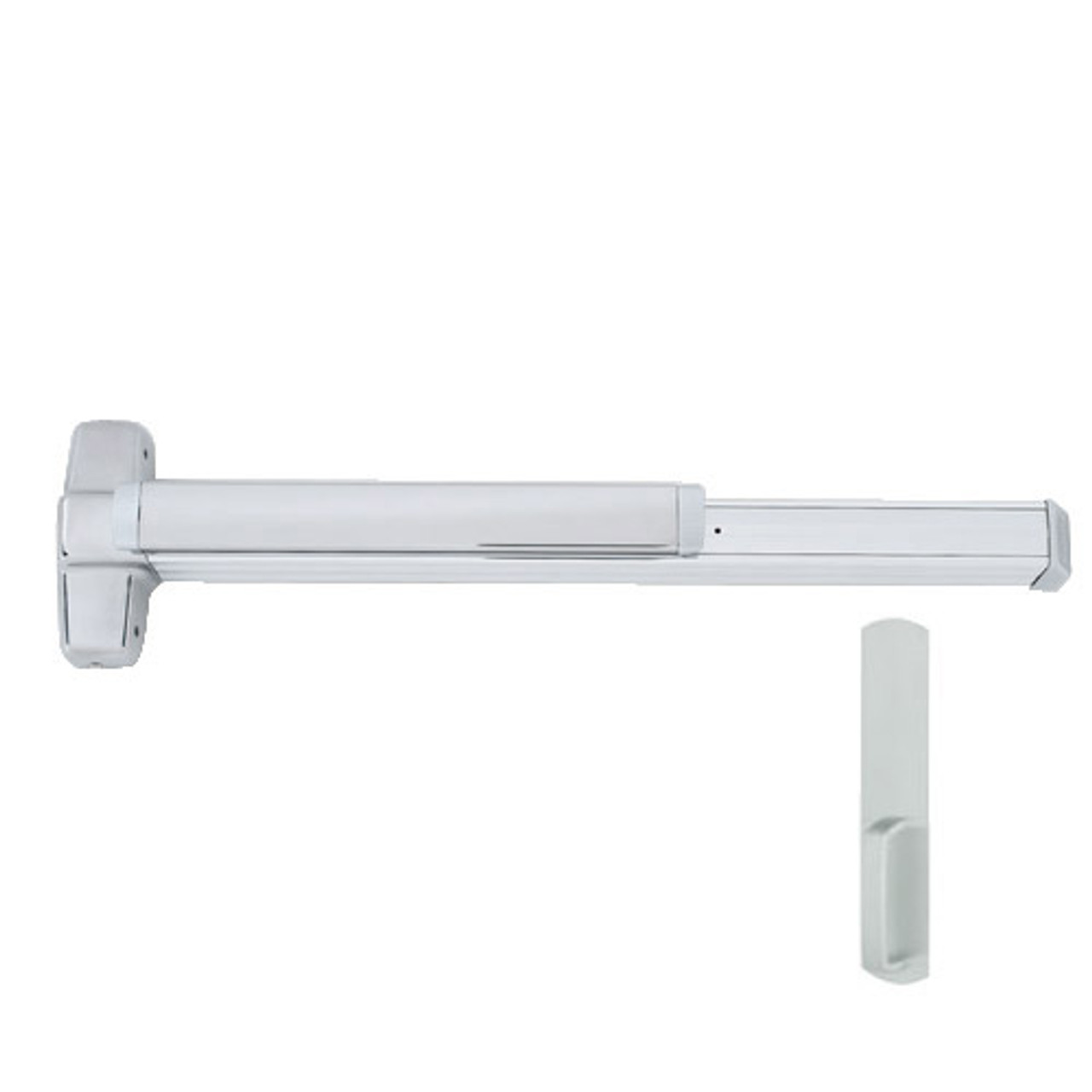

9847WDC-DT-US28-3 Von Duprin 9847WDC Series Non Fire Rated Wood Door Concealed Rod Exit Device in Anodized Aluminum Finish

This device is for a 36" door

The Von Duprin 9847WDC-DT-US28-3 series of exit device for all types of single and double wood doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9847WDC wood door concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9847WDC series has a "smooth mechanism case"

Features and Benefits:

• Anodized Aluminum Finish
• ANSI Function: 02
• Dummy Trim - Pull when Dogged
• Scalp plate - Furnished standard with an 8" (203mm) long scalp plate for easy access to rods
• Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (711mm to 914 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9847WDC series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking top bolt, 5/8" (16mm) throw
• Strike: Top - 338 unfinished and Bottom - 385A unfinished strikes included as always
• Hex key dogging feature standard
• Product includes 338 and 385A strikes, sex bolts and 8" scalp plate
• Includes 990DT standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
• Device centerline from finished floor: 39-5/8" (1006 mm) standard and adjustable from 35-5/8" (905mm) to 49-5/8" (1260mm)
