Product Description

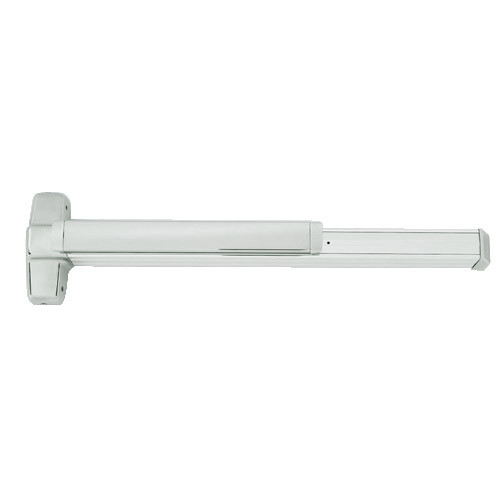

9849EO-US26D-4 Von Duprin 9849 Series Exit Only Non Fire Rated Concealed Vertical Cable Exit Device in Satin Chrome Finish

This device is for a 48" door

The Von Duprin 9849EO-US26D-4 series of exit device for all types of single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9849 concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9849 series has a "smooth mechanism case"

Features and Benefits:

• Satin Chrome finish
• ANSI Function: 01
• Hex key dogging feature standard
• Recommended for door opening heights - 6'8" to 8'4" as standard
• Cylinders and sex bolts are not included
• Includes no trim
• Device lengths: 4 feet (1219 mm) i.e 4' device for 2'10" to 4' (864mm to 1219 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9849 series exit devices are UL listed for panic exit hardware and are certified to ANSI A156.3, 2008 Grade1
• Strike: Top - 249 and bottom - 349 unfinished strikes included as always
• Latch bolt: Deadlocking top and bottom bolt, 1/2" (13mm) throw
• Device centerline from finished floor: 39-5/8" (1006 mm)
• Vertical cable: 7/32" (6mm) diameter stainless steel cables
