Product Description

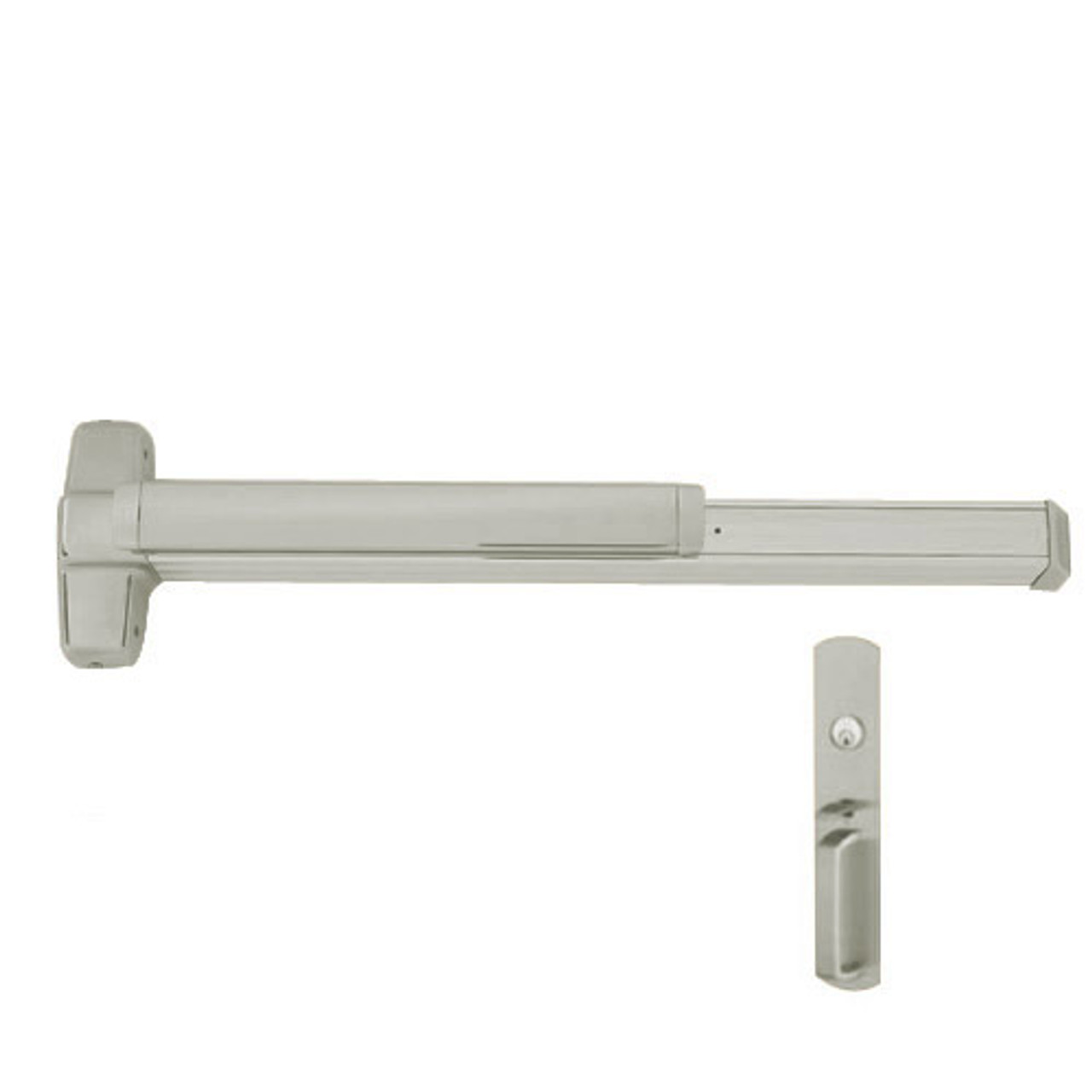

9849TP-F-US15-4 Von Duprin 9849 Series with 990TP Thumbpiece Fire Rated Concealed Vertical Cable Exit Device in Satin Nickel Finish
This device is for a 48" door
The Von Duprin 9849TP-F-US15-4 series of exit device for all types of single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9849 concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire rated exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.
The 9849 series has a "smooth mechanism case"
Features and Benefits:
- Satin Nickel finish
- ANSI Function: 05
- Thumbpiece trim function - key retracts latchbolt
- No mechanical dogging feature
- Recommended for door opening heights - 6'8" to 8'4" as standard
- Cylinders and sex bolts are not included
- Includes 990TP standard trim ANSI A156.3 (2008) Grade-1 certified
- Device lengths: 4 feet (1219 mm) i.e 4' device for 2'10" to 4' (864mm to 1219 mm) door size
- Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
- Non-handed operation provides greater flexibility
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 9849 series exit devices are UL listed for fire rated exit hardware
- Strike: Top - 249 and bottom - 349 unfinished strikes included as always
- Latch bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
- Device centerline from finished floor: 39-5/8" (1006 mm)
- Vertical cable: 7/32" (6mm) diameter stainless steel cables
