Product Description

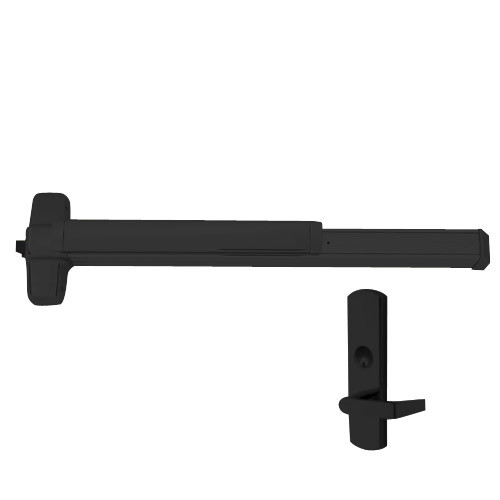

98L-315-3-LHR Von Duprin 98 Series with 996L Lever Non Fire Rated Rim Panic Exit Device in Black Finish

The Von Duprin 98L-315-3-LHR series of Exit Device for all types of single and double doors with mullion is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 98 Rim panic exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 98 series has a "smooth mechanism case"

Features and Benefits:

• Black Finish
• Lever Trim - Key Locks and Unlocks
• Handing: Left handed
• ANSI Function: 08
• Cylinders and sex bolts are not included
• Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (711mm to 914 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood and metal doors
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 98 Series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Strike: 299 strike dull black included as always
• Hex key dogging feature standard
• Includes 996L standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
• Cylinder must be ordered separately
• Device centerline from finished floor: 39-13/16" (1011mm) at center of device; 39-11/16" (1008mm) with mullion
