Product Description

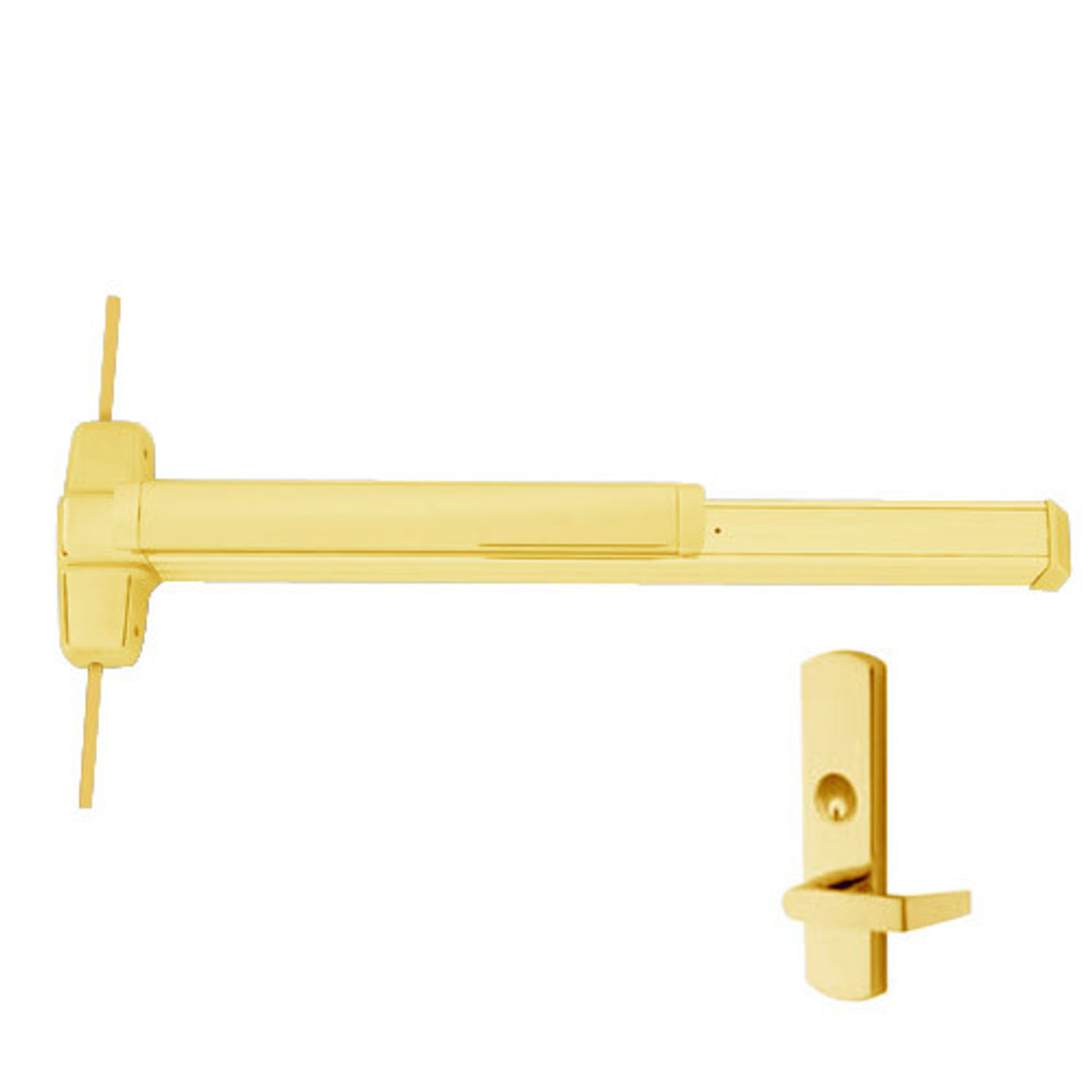

9927L-F-US3-4-RHR Von Duprin 9927 Series with 996L Lever Trim Right Handed Fire Rated Surface Vertical Rod Device in Bright Brass Finish

This device is for a 48" door

The Von Duprin 9927L-F-US3-4-RHR series of exit device for all types of pairs of doors up to 8' x 10' (2438mm x 3048mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9927 surface vertical rod device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire rated exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9927 series has a "grooved mechanism case"

Features and Benefits:

• Bright Brass finish
• ANSI Function: 08
• Handing: Right handed
• No mechanical dogging feature
• Cylinders are not included
• Sex bolts: 325 SNB for top and bottom latch
• Includes 996L standard trim ANSI A156.3 - 2008 Grade 1 certified
• Lever trim function - key locks and unlocks
• Device lengths: 4 feet (1219 mm) i.e 4' device for 2'10" to 4' (864mm to 1219 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal and wood doors
• Latch bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9927 series exit devices are UL listed for fire rated exit hardware
• Strike: Top - 299 - dull black and bottom - 304L strikes included as always
• Device centerline from finished floor: 39-5/8" (1006 mm)
