Product Description

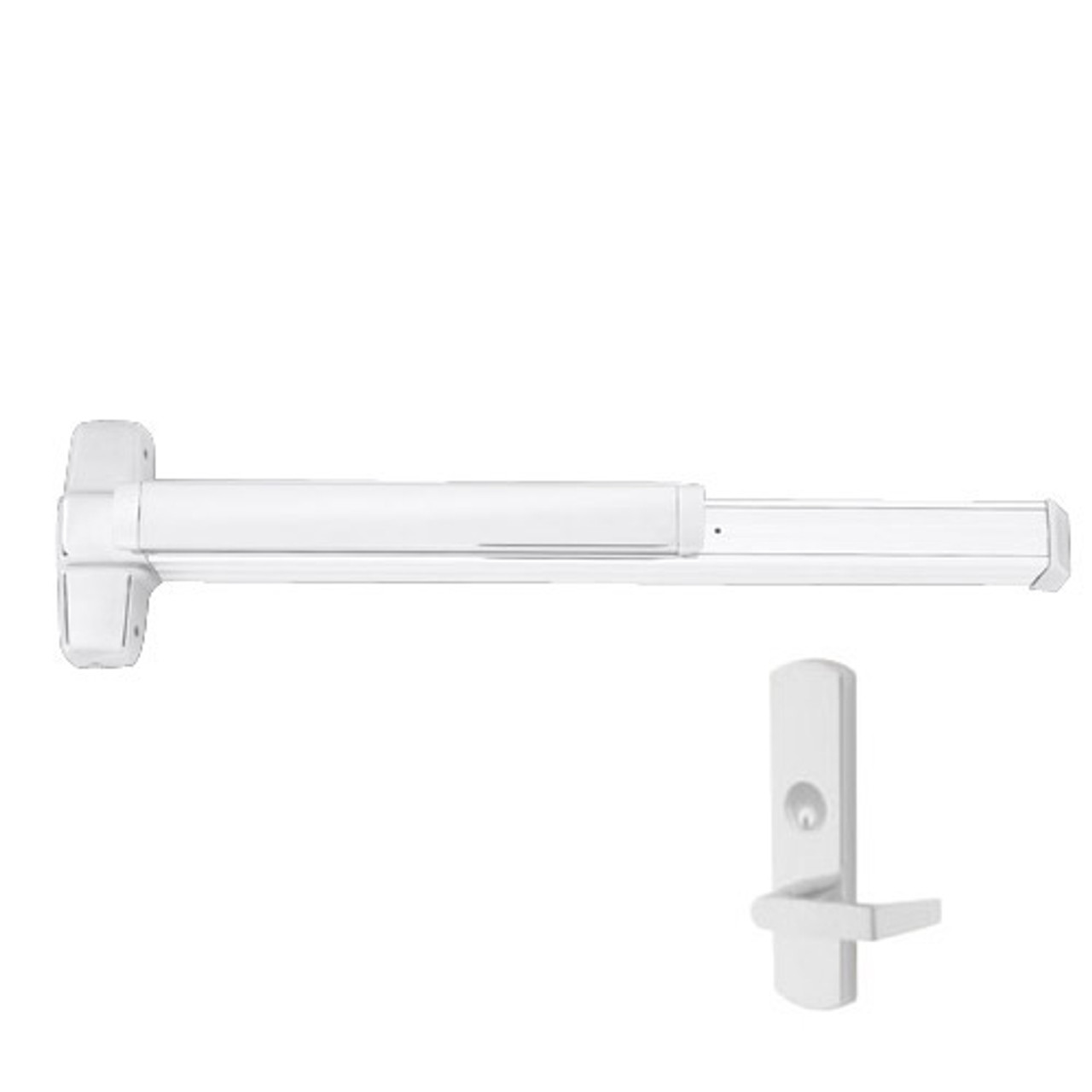

9947L-F-US26-3-LHR Von Duprin 9947 Series with 996L Lever Left Handed Fire Rated Concealed Vertical Rod Exit Device in Bright Chrome Finish

This device is for a 36" door

The Von Duprin 9947L-F-US26-3-LHR series of exit device for use on pairs of doors up to 8' x 10' (2438mm x 3048mm) doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9947 concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire rated exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9947 series has a "grooved mechanism case"

Features and Benefits:

• Bright Chrome finish
• ANSI Function: 08
• Handing: Left Handed
• No mechanical dogging feature
• Cylinders and sex bolts are not included
• Includes 996L standard trim ANSI A156.3, 2008 Grade1 certified
• Lever trim function - key locks and unlocks
• Device lengths: 3 feet (914 mm) i.e 3' device for 2'4" to 3' (711mm to 914 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9947 series exit devices are UL listed for fire rated exit hardware
• Strike: Top - 338 and bottom - 385A unfinished strikes included as always
• Latch bolt: Deadlocking top and bottom bolt, 5/8" (16mm) throw
• Device centerline from finished floor: 39-5/8" (1006mm) standard
• Vertical rod: Round 2-piece adjustable rods
