Product Description

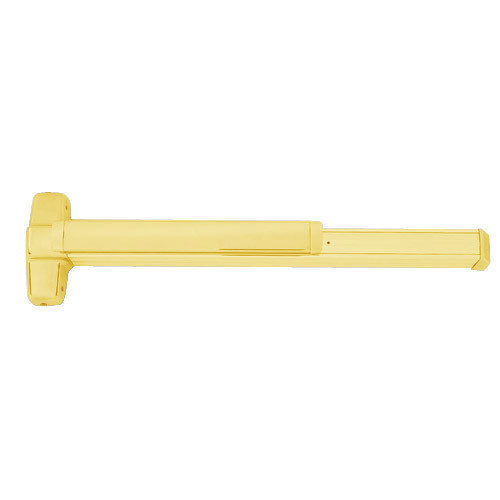

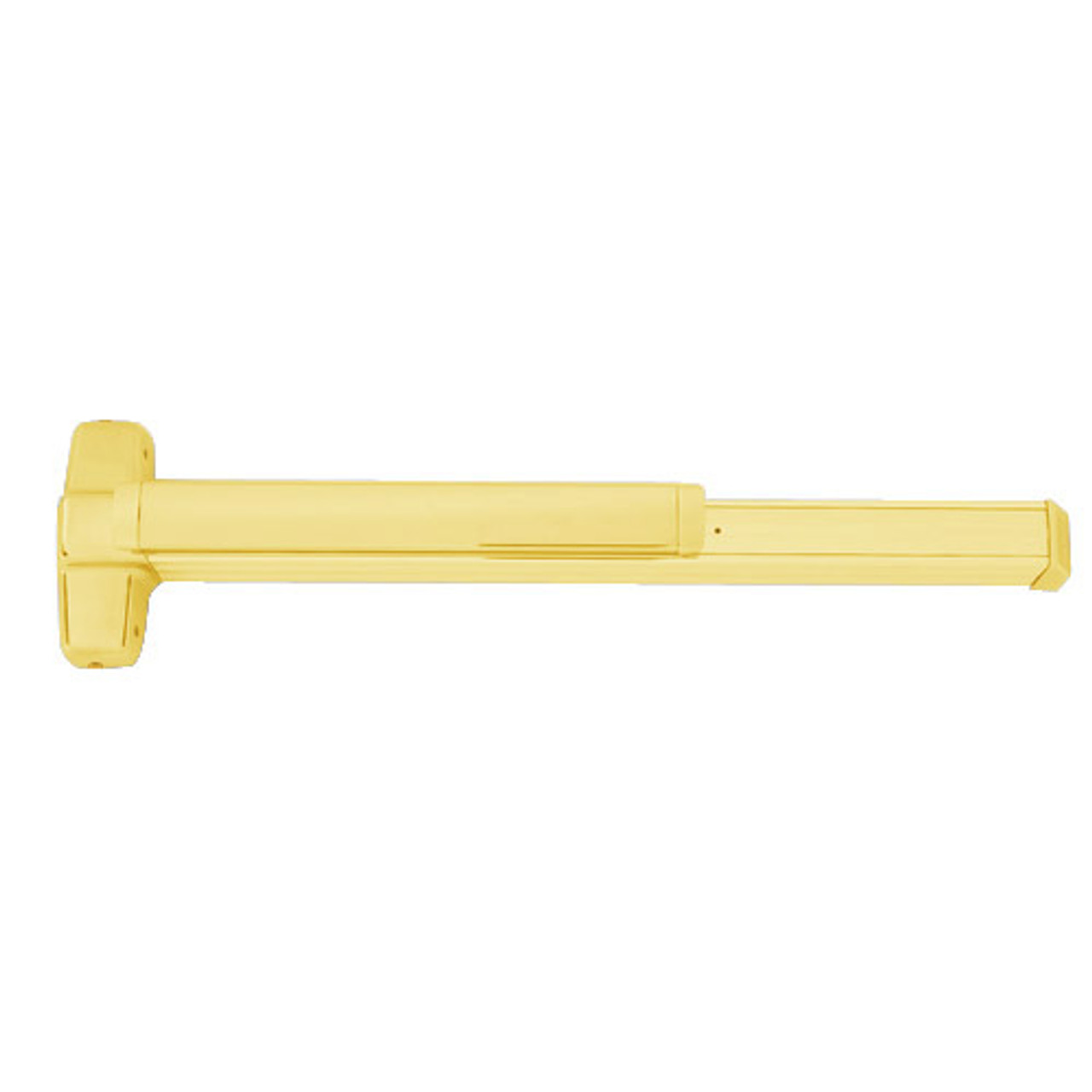

9948EO-F-US3-3 Von Duprin 9948 Series Exit Only Fire Rated Concealed Vertical Exit Device in Bright Brass Finish

This device is for a 36" door

The Von Duprin 9948EO-F-US3-3 series of exit device for use on pairs of doors up to 8' x 10' (2438mm x 3048mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9948 concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire rated exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9948 series has a "grooved mechanism case"

Features and Benefits:

• Bright Brass finish
• ANSI Function: 01
• No mechanical dogging feature
• Cylinders and sex bolts are not included
• Includes no trim
• Device lengths: 3 feet (914 mm) i.e 3' device for 2'4' to 3' (711mm to 914 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9948 series exit devices are UL listed for fire rated exit hardware and are certified to ANSI A156.3, 2008 Grade1.
• Strike: Top - 338 unfinished, bottom - 385A unfinished strikes included as always
• Latch bolt: Deadlocking top bolt, 3/4" (19mm) throw and bottom bolt, 1-1/2" (38mm) throw
• Device centerline from finished floor: 39-5/8" (1006mm) standard and adjustable from 35-5/8" (905mm) to 49-5/8" (1260mm)
