Product Description

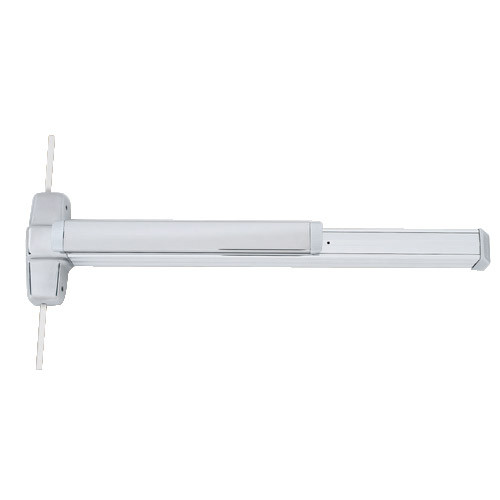

9948EO-US28-2 Von Duprin 9948 Series Exit Only Non Fire Rated Concealed Vertical Rod Exit Device in Anodized Aluminum Finish

This device is for a 24" door

The Von Duprin 9948EO-US28-2 series of exit device for use on single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9948 concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9948 series has a "grooved mechanism case"

Features and Benefits:

• Anodized Aluminum finish
• ANSI Function: 01
• Hex key dogging feature standard
• Cylinders and sex bolts are not included
• Includes no trim
• Device lengths: 2 feet (610 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9948EO series exit devices are UL listed for panic exit hardware and are certified to ANSI A156.3, 2008 Grade1
• Strike: Top - 338 and bottom - 385A unfinished strikes included as always
• Latch bolt: Deadlocking top bolt 3/4" (19mm) and bottom bolt 1/2" (38mm) throw
• Device centerline from finished floor: 39-5/8" (1006mm) standard
• Vertical rod: Round 2-piece adjustable rods
