Product Description

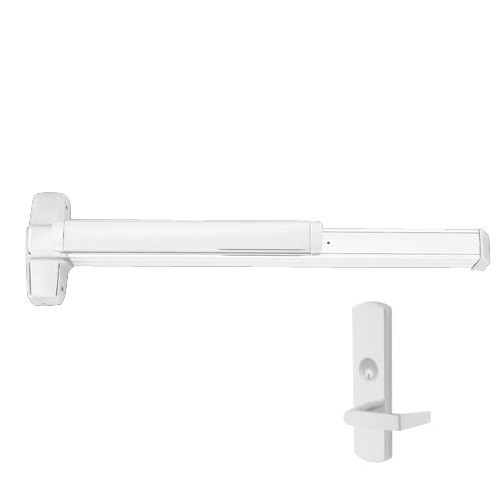

9949L-US26-4-LHR Von Duprin 9949 Series with 996L Lever Non Fire Rated Concealed Vertical Cable Exit Device in Bright Chrome Finish

This device is for a 48" door

The Von Duprin 9949L-US26-4-LHR series of exit device for all types of single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9949 concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9949 series has a "grooved mechanism case"

Features and Benefits:

• Bright Chrome finish
• ANSI Function: 08
• Hex key dogging feature standard
• Cylinders and sex bolts are not included
• Includes 996L standard trim ANSI A156.3 (2008) Grade-1 certified
• Device lengths: 4 feet (1219 mm) i.e 4' device for 2'10" to 4' (864mm to 1219 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
• Handing: Left handed
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9949 series exit devices are UL listed for panic exit hardware
• Strike: Top - 249 and bottom - 349 - unfinished strikes included as always
• Latch bolt: Deadlocking top and bottom bolt, 1/2" (13mm) throw
• Device centerline from finished floor: 39-5/8" (1006 mm)
• Lever trim function - key locks and unlocks
• Vertical cable: 7/32" (6mm) diameter stainless steel cables
